CF2-1218RC-S
N/A Flatbed Cutter

The CF2-1218 is a wide format flatbed cutting plotter built for larger production environments requiring precision cutting across oversized materials and specialty substrates. With a generous cutting area, multiple tool options, and seamless print-and-cut integration, it helps businesses improve workflow efficiency while expanding application possibilities across packaging, signage, industrial materials, and POP graphics.

Warranty
1 Year
*u.s. only. for canada, latin america and caribbean pricing, please contact an authorized dealer in your area.
CF2-1218RC-S
Tool Options
Pen, Eccentric, Tangental, Reciprocating Cutters, Creasing Roller
Buffer Memory
27Mb
Accuracy
±0.1 mm

Large Cutting Area for Oversized Projects
Handle large-format graphics, rigid boards, and packaging layouts with an effective cutting area up to 70.9” x 47.2”.

Versatile Multi-Tool Cutting System
Configure the system with tangential, reciprocating, swivel, and creasing tools to support diverse materials and production requirements.

Accurate Contour Cutting for Print-and-Cut Workflows
The patented Mimaki color photo sensor delivers precise contour alignment for signage, decals, packaging, and display graphics.

Built for Heavy-Duty Material Processing
Cut corrugated board, PVC, reflective materials, foam, industrial rubber, and more with stable media handling and repeatable precision.

As Configured / Standard Model

Features

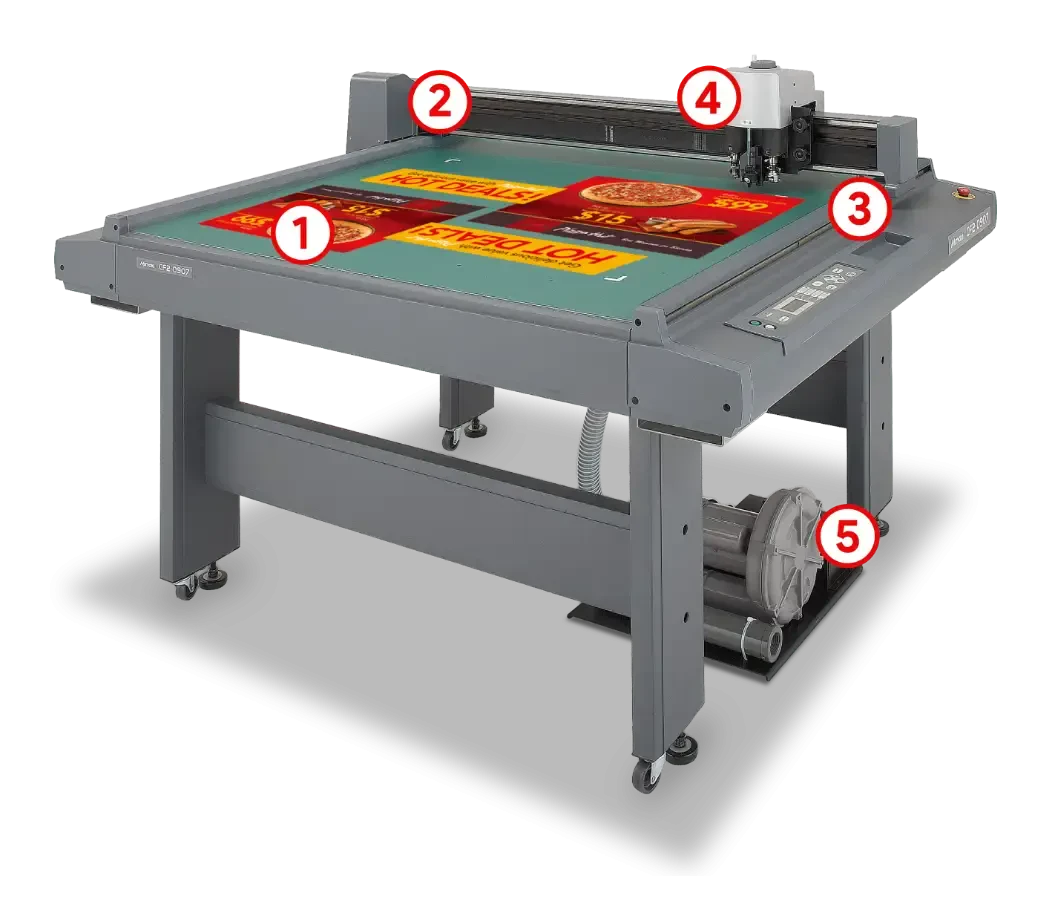

CF2-1218RC-S feature map
1
Cutting Area:
Offers an effective plotting area of 46 x 35.4in (1,170 x 900 mm) for sensor models.
Servo Motor:
Utilizes an advanced X, Y, Z, and θ 4-axis DC software servo motor.
Mark Sensor:
High-performance color photo sensor accurately detects register marks for precise outline cutting.
Multi-Tool Head:
Features three tool stations: pen/swivel, reciprocating, and high-pressure tangential cutter.
Vacuum Suction:
Firmly secures your work media in place using a powerful air suction blower.

Highlights

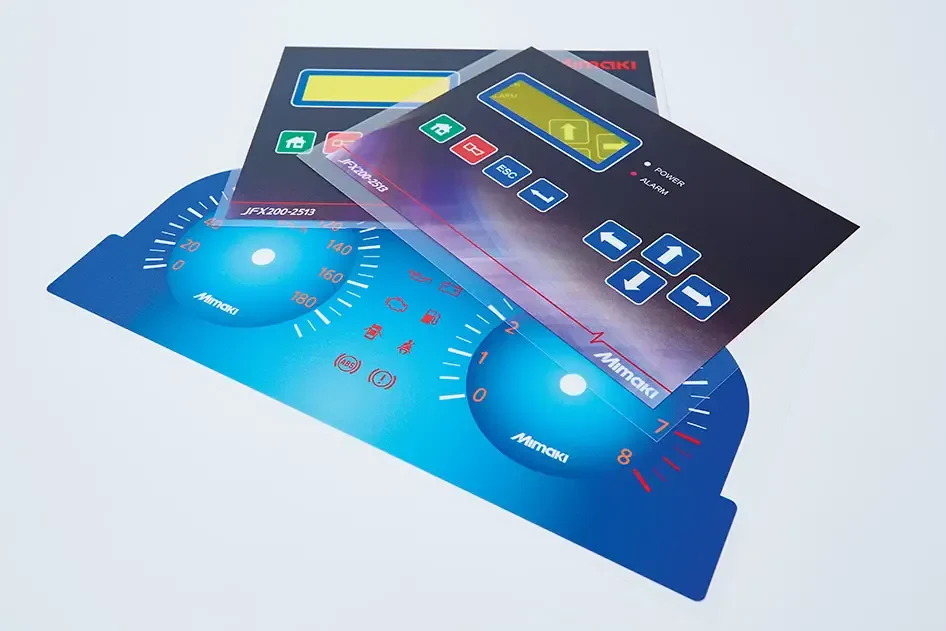

  • Printed interface templates
  • Printed product packaging
  • Printed window graphic

Solving Print Challenges with Ease

Faster Production, Superior Quality, and Greater Versatility
Technician working on a Mimaki printer

Technology

Our Core Technologies

Mimaki printers include core technologies and unique features that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production.

Continued productivity
Nozzle Recovery System
Nozzle Check Unit

Optimized throughput
Mimaki Bulk Ink System
Mimaki Circulation Technology
Uninterrupted Ink Supply System
Execptional print quality
Mimaki Fine Diffusion
Waveform Control
Mimaki Advanced Pass System
Precision cutting
Continuous Mark
ID Cut
Half Cut function
Zero Margin Mark
Over Cut function

Supplies & Inks

Ink options that cater to your needs

Get the most out of your Mimaki printer with you advance technologies.

Colors Available

Software

Mimaki Workflow

enables to check the machine operation status and operate the panel from a distance.

The following operations are possible from a smartphone or PC installed with MRA:

Checking the status (operating status, ink level, etc.) from a location away from where the printer/plotter is installed.

Remotely performing printer/plotter operations not normally possible unless in the same location Viewing the usual pager-format panel information as a single screen.

Mimaki Workflow Raster Link 7 App Screenshot

Specifications

Full specifications
& model details
Device Type
Flatbed Cutting Table
Bed Size
47.2 x 69.7 Inches
Tool Stations
3 (RC Head)
Max Media Thickness
10mm
Max Cutting Pressure
5000g
Max Creasing Pressure
5000g

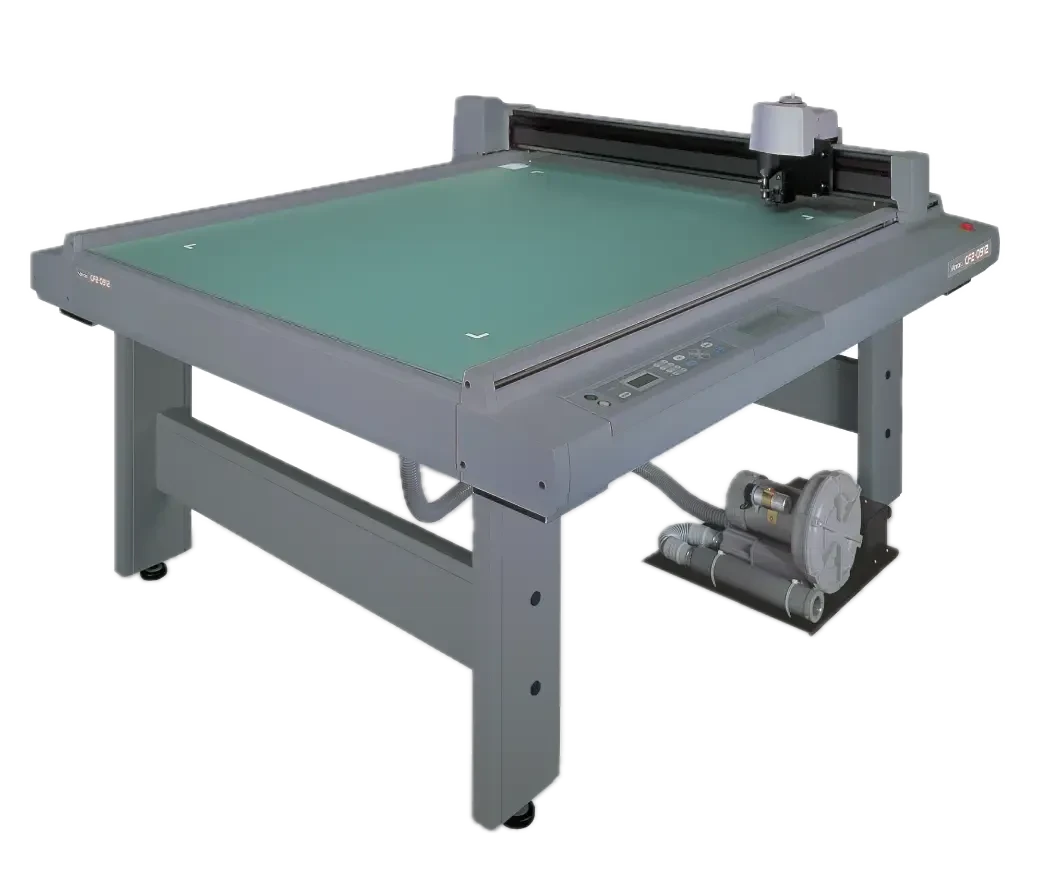

CF2-1218RC-S Specifications
