Unlock Your 3D Potential­­

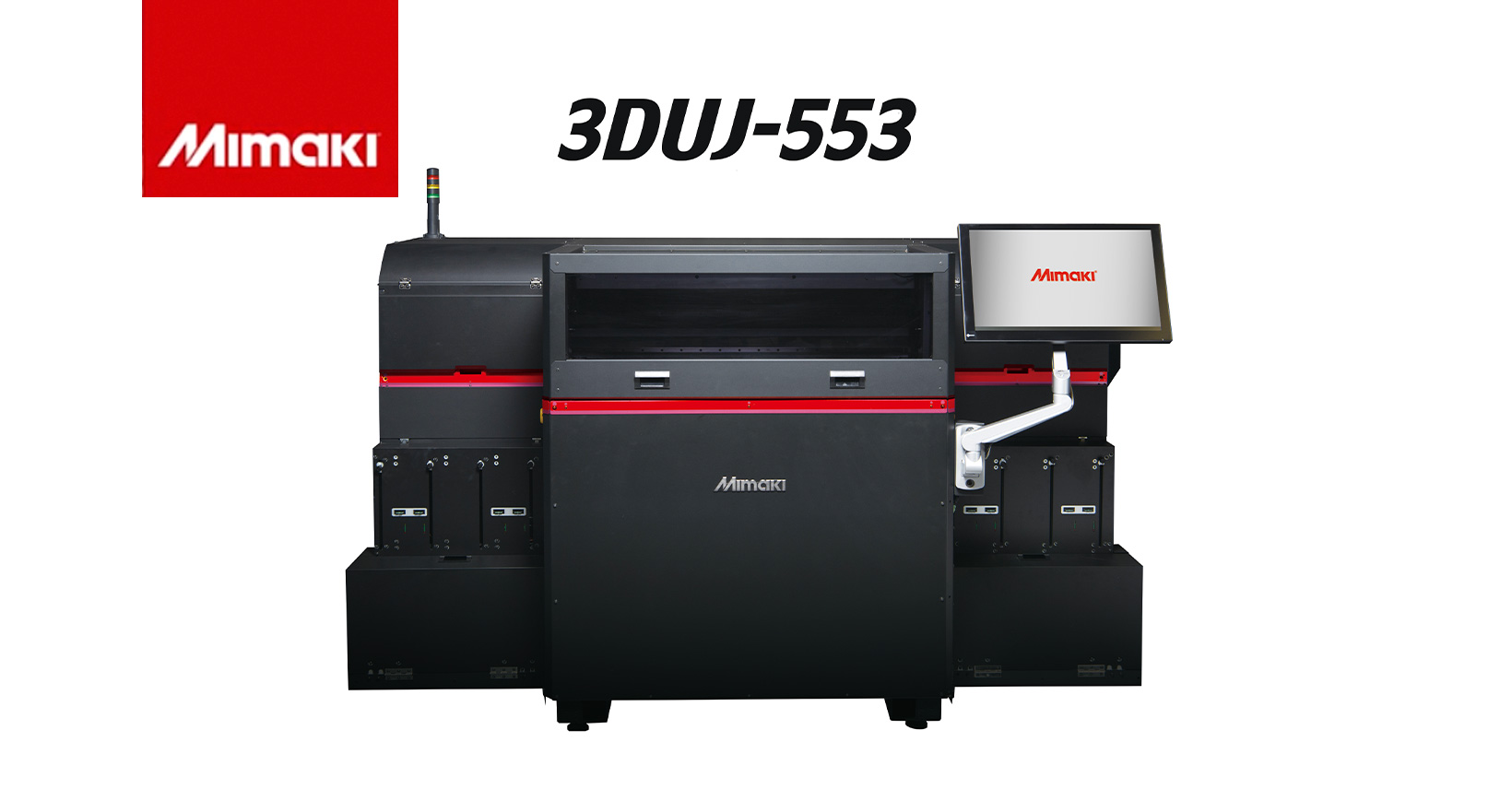

The 3DUJ-553 is world’s first photorealistic full-color 3D printer capable of producing more than 10 million unique colors. It’s perfect for applications where color accuracy and fine detail are critical. From prototyping to medical modeling, this machine creates full-color models with unmatched quality.⁡
  • More than 10 million possible color combinations
  • Layer thickness can be set to 19, 22, 32 or 42 microns
  • Water soluble support material
  • Clear ink for transparent and translucent effects; high-opacity white for accurate color reproduction
  • 20 x 20 x 12 inches (508 x 508 x 305 mm) build area
  • Dual UV-LED curing lamps
  • Customizable device output ICC profiles with optional Mimaki Profile Master 3 (MPM3) software
  • Includes Mimaki 3DLink and Printer Driver software

Our Core Technologies


Waveform Control


Variable Dot Technology


Nozzle Check Unit


Mimaki Circulation Technology

Applications

3D Partners

Fusion 360 unifies design, engineering, electronics, and manufacturing into a single software platform. Netfabb offers a complete toolset that streamlines workflows and reduces build errors.
Data-Driven Solutions for 3D Post-Printing.
Cuttlefish is a unique driver allowing high-fidelity reproduction of an object’s appearance in addition to its shape and more.

Specifications

Build Area (W × D × H)

20 x 20 x 12 inches (508 x 508 x 305 mm)

Max. Build Weight

154.3 lbs (70 kg)

Color Range

More than 10 million

Print Mode / Resolution / Thickness

Fast / 42 micron
Standard / 32 micron
High Quality / 22 micron
Color-in-Clear / 19 micron

Curing

Water-cooled LED-UV lamps x 2

File Formats

OBJ, STL, PLY, 3MF, WRL

Circulation

Internal print head ink circulation

Interface

Ethernet 1000 BASE-TX (Gigabit)

Safety Standards

VCCI Class A / FCC CLASS A / ETL (UL60950 compliant)
CE marking (EMC Directive, Low Voltage Directive)/ CB certification / RoHS compliant / REACH

Operational Environment

Temperature: 68 – 86 °F (20 – 30 °C)
Humidity: 35 – 65% RH, non-condensing
Accuracy guaranteed temp.:68 – 77 °F (20 – 25 °C)

Power

Single-phase 100-240 VAC, ±10%, 50/60 Hz ±1 Hz ×3 (Main unit 1 / Monitor 1 / External PC 1)

Power Consumption

1,630W or less (Total)

Outer Dimension (W x D x H)

88.6 x 59 x 61 inches (2250 x 1500 x 1550 mm)

Weight

1323 lbs (600 kg)

Print Size

X: 5cm Y: 50cm Z: 1cm = 250cm3

Layer thickness
  • 42μm
  • 32μm
  • 22μm
Resolution
  • 600x300x600
  • 600x300x800
  • 600x300x1,270
Print time
  • 1:30 h
  • 1:45 h
  • 2:24 h
Print size

X: 50cm Y: 50cm Z: 1cm = 2,500cm3

Layer thickness
  • 42μm
  • 32μm
  • 22μm
Resolution
  • 600x300x600
  • 600x300x800
  • 600x300x1,270
Print time
  • 8:17 h
  • 9:41 h
  • 13:12 h

Inks

3D Modeling Ink (MH-100)CyanMagentaYellowBlackWhiteClear
1L BottleMH100-C-BAMH100-M-BAMH100-Y-BAMH100-K-BA
4.8L BottleMH100-W-BDMH100-CL-BD

*Inks sold vary by county, see specification chart above for details.

3D Support Ink (SW-100)Support
4.8L BottleSW100-Z-BD

Inks

3D Modeling Ink (MH-100)
1L Bottle
Cyan:
MH100-C-BA
Magenta:
MH100-M-BA
Yellow:
MH100-Y-BA
Black:
MH100-K-BA
White:
_ _
Clear:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
4.8L Bottle
Cyan:
_ _
Magenta:
_ _
Yellow:
_ _
Black:
_ _
White:
MH100-W-BD
Clear:
MH100-CL-BD
:
_ _
:
_ _
:
_ _
:
_ _
3D Support Ink (SW-100)
4.8L Bottle
Support:
SW100-Z-BD

Resources

View Video

Specifications

3DUJ-553
