JFX200-1213 EX

JFX200-1213 EX
See available promo
Click Here See available promo

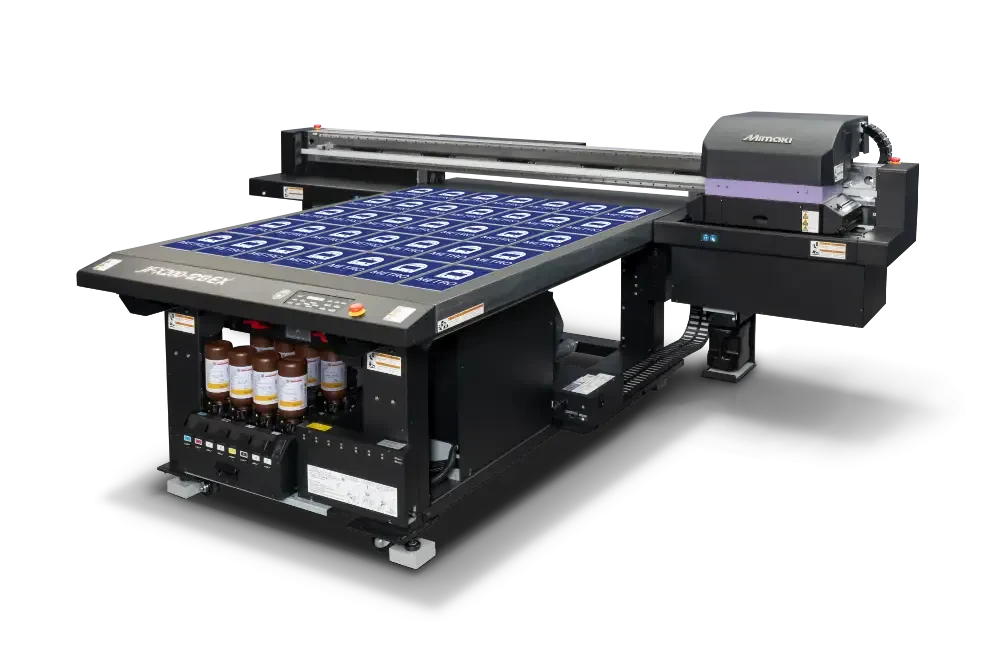

JFX200-1213 EX
UV-LED Flatbed Printer

The Mimaki JFX200-1213 EX medium format UV-LED flatbed printer is designed for low- to medium-volume production offering wide-format printing capabilities in a space-saving 4’x4’ format. It excels in versatile applications, including specialty printing such as textured surfaces and ADA signage, making it ideal for businesses and organizations with limited space.

Warranty
1 Year
*u.s. only. for canada, latin america and caribbean pricing, please contact an authorized dealer in your area.
JFX200-1213 EX
SPEED
up to
269.1
sqft/hr
4 Color + White 300x300 4Pass
Available Colors
CMYK, Lc, Lm, W, Cl, Pr
*varies by ink type and configuration
Minimum Drop Size
5pl

Big impact, small footprint

Wide Format Power in a Compact Footprint
Take advantage of wide format production capabilities with a space-saving UV-LED flatbed printer built for efficiency.

Print on More Than Just Flat Surfaces
Expand your offering with specialty applications including textured printing, ADA-compliant signage, and more.

Streamline Medium-Volume Production
Easily produce batches of 18" x 24" signs or utilize jigs for efficient multi-up printing and increased throughput.

As Configured / Standard Model

Features

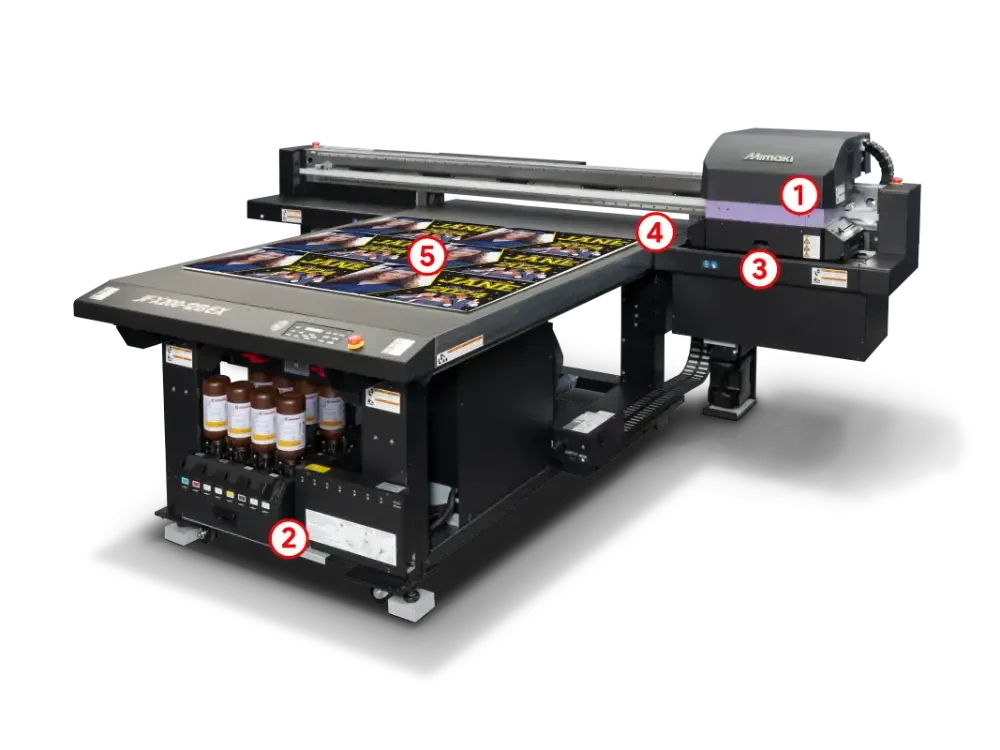

JFX200-1213 EX feature map
1
Print Heads:
Features 3 staggered 1200dpi (max) print heads
Ink Drawer:
Pull-out ink supply for easy replacement and maintenance
Gap Pins:
Automatically measures media thickness to ensure proper head height
Media Jam Sensors:
Stops printing to prevent media from contacting heads
Two-zone vacuum table:
User selectable zones and foot-pedal activation

Highlights

  • Printed sign hangin in a coffee shop window

Solving Print Challenges with Ease

Faster Production, Superior Quality, and Greater Versatility
Technician working on a Mimaki printer

Technology

Our Core Technologies

Mimaki printers include core technologies and unique features that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production.

Continued productivity
Nozzle Recovery System
Nozzle Check Unit

Optimized throughput
Mimaki Bulk Ink System
Mimaki Circulation Technology
Uninterrupted Ink Supply System
Execptional print quality
Mimaki Fine Diffusion
Waveform Control
Mimaki Advanced Pass System
Precision cutting
Continuous Mark
ID Cut
Half Cut function
Zero Margin Mark
Over Cut function

Supplies & Inks

Ink options that cater to your needs

Get the most out of your Mimaki printer with you advance technologies.

Colors Available

CMYK
CMYK Ink Swatch
Lc, Lm, W, Cl
Lc, Lm, W, Cl Ink Swatch
Clear Gloss
Clear Gloss Ink Swatch
Primer
Primer Ink Swatch
White
White Ink Swatch
Ink types
LUS-120
LH-100
LUS-150
PR-200
LUS-350
LUS-211

Software

Mimaki Workflow

enables to check the machine operation status and operate the panel from a distance.

The following operations are possible from a smartphone or PC installed with MRA:

Checking the status (operating status, ink level, etc.) from a location away from where the printer/plotter is installed.

Remotely performing printer/plotter operations not normally possible unless in the same location Viewing the usual pager-format panel information as a single screen.

Mimaki Workflow Raster Link 7 App Screenshot

Specifications

Full specifications
& model details
Device Type
Flatbed Printer
Ink Technology
UV-LED
Print Heads
2 Staggered, 1 In-Line
Max Resolution
1200 dpi
Bed Size
50 x 51.2 Inches
Max Media Thickness
2 Inches

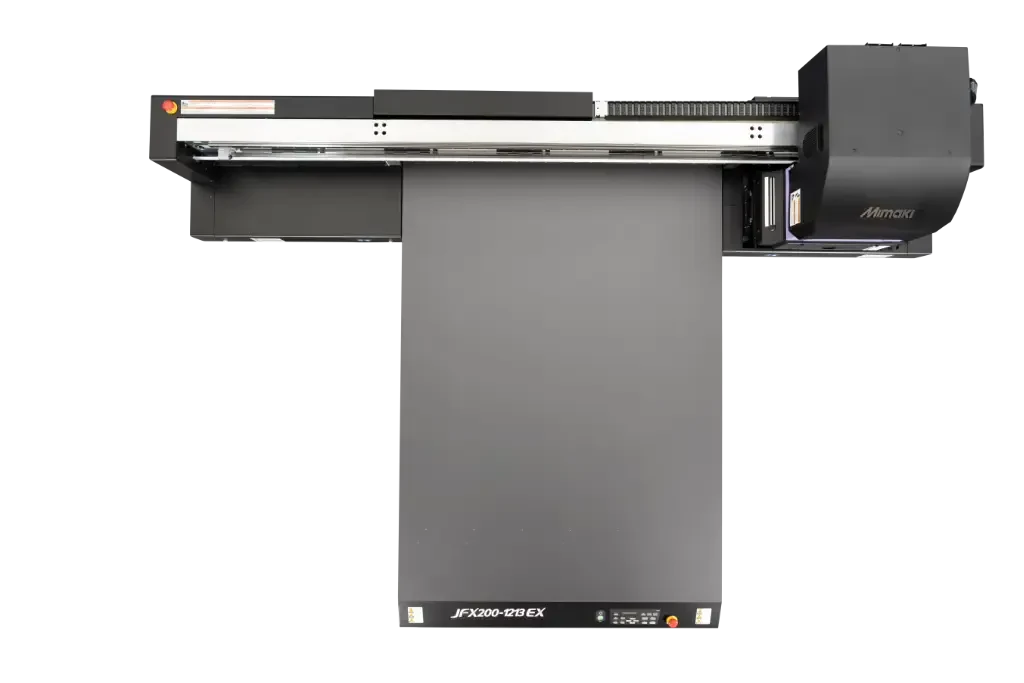

JFX200-1213 EX Specifications
