List Price (USD):
Valid in USA and Canada only
3DUJ-2207: $42,078
Empower with Color Education Bundle: Learn more here!

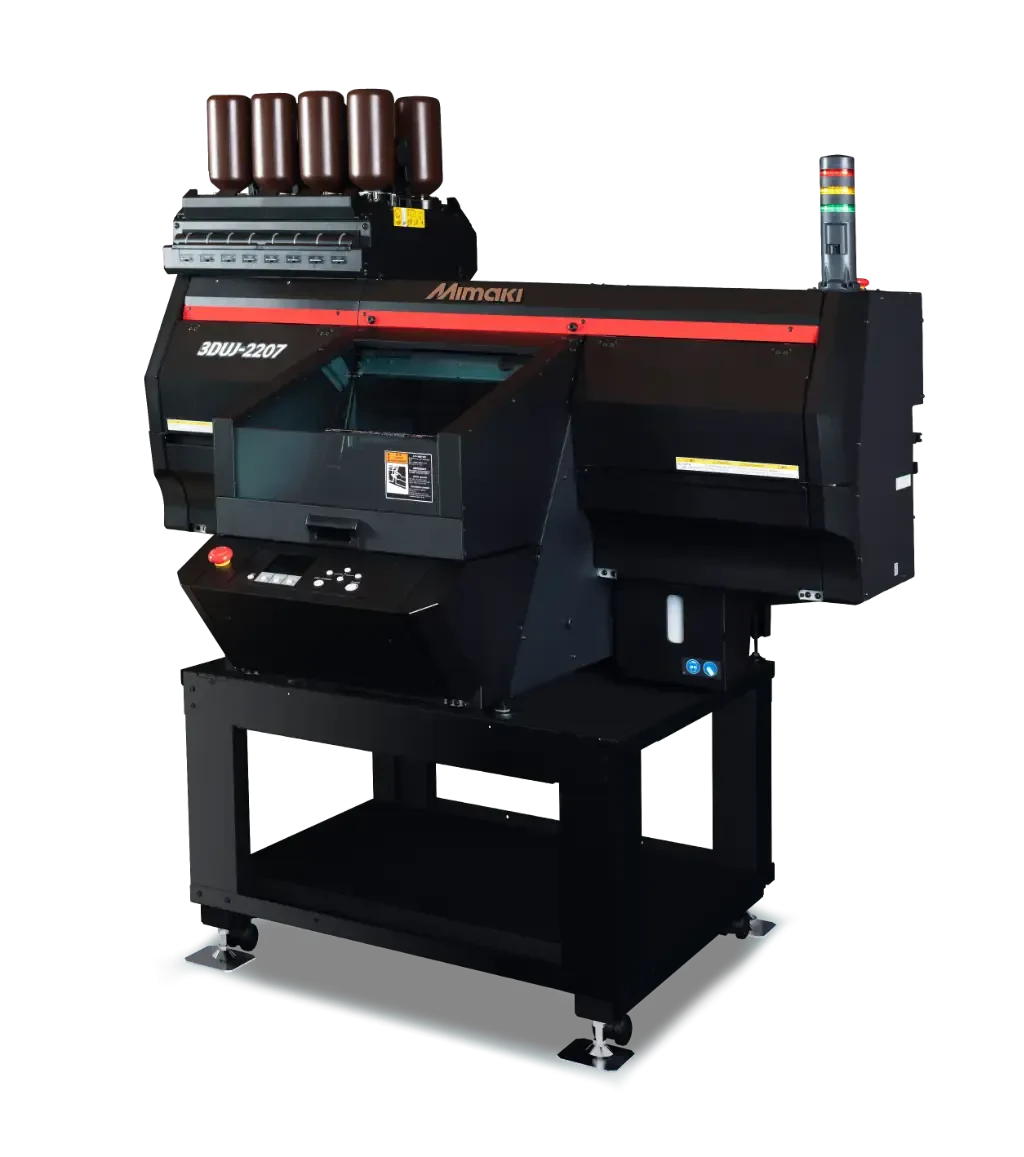

Big Color, Compact Size

The 3DUJ-2207 is the latest addition to the Mimaki 3DUJ full color photorealistic 3D printer family. Using the same printing technology and build materials as the larger 3DUJ-553, the 3DUJ-2207 is an affordable solution for entry into the full-color 3D printing market. The smaller build area is matched with higher resolution print heads, producing stunning full-color 3D prints on a platform that is easily scalable as your business grows. Learn more about our Educational Bundle
  • More than 10 million possible color combinations
  • 28 Micron layer thickness
  • Water-soluble support material
  • Clear ink for transparent and translucent effects; high-opacity white for accurate color reproduction
  • 8 x 8 x 3 inch (203 x 203 x 76 mm) build area
  • Single UV-LED curing lamps
  • Customizable device output ICC profiles with optional Mimaki Profile Master 3 (MPM3) software
  • Includes Mimaki 3DLink and Printer Driver software

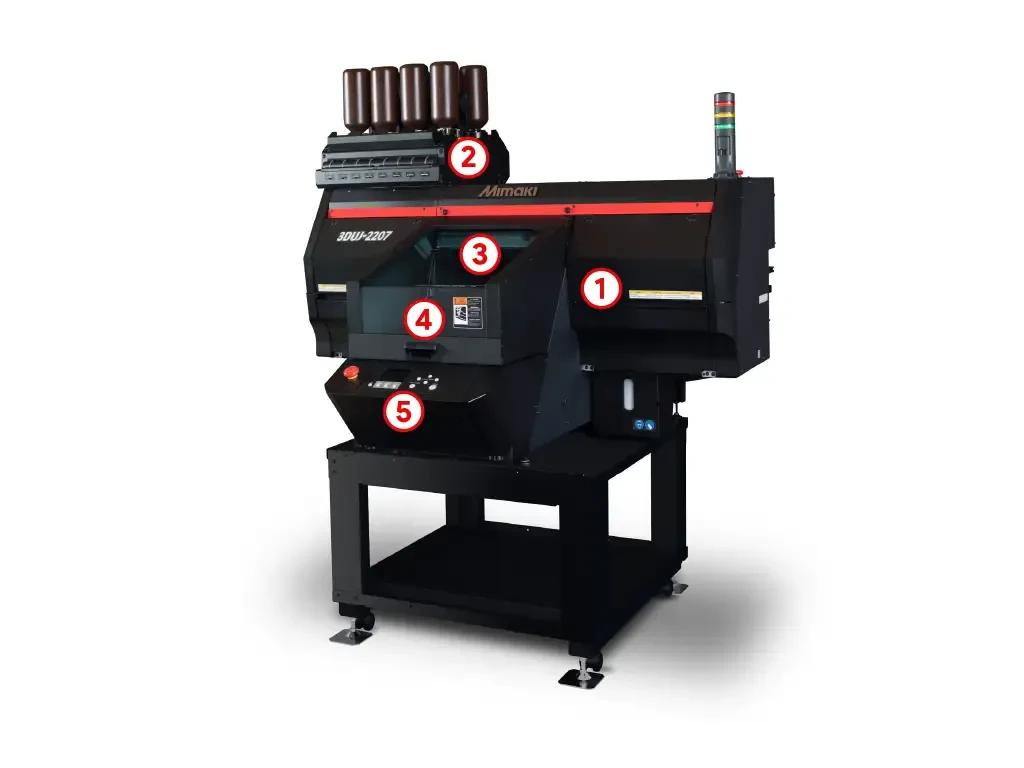

Our Core Technologies


Waveform Control


Variable Dot Technology


Nozzle Check Unit


Mimaki Circulation Technology

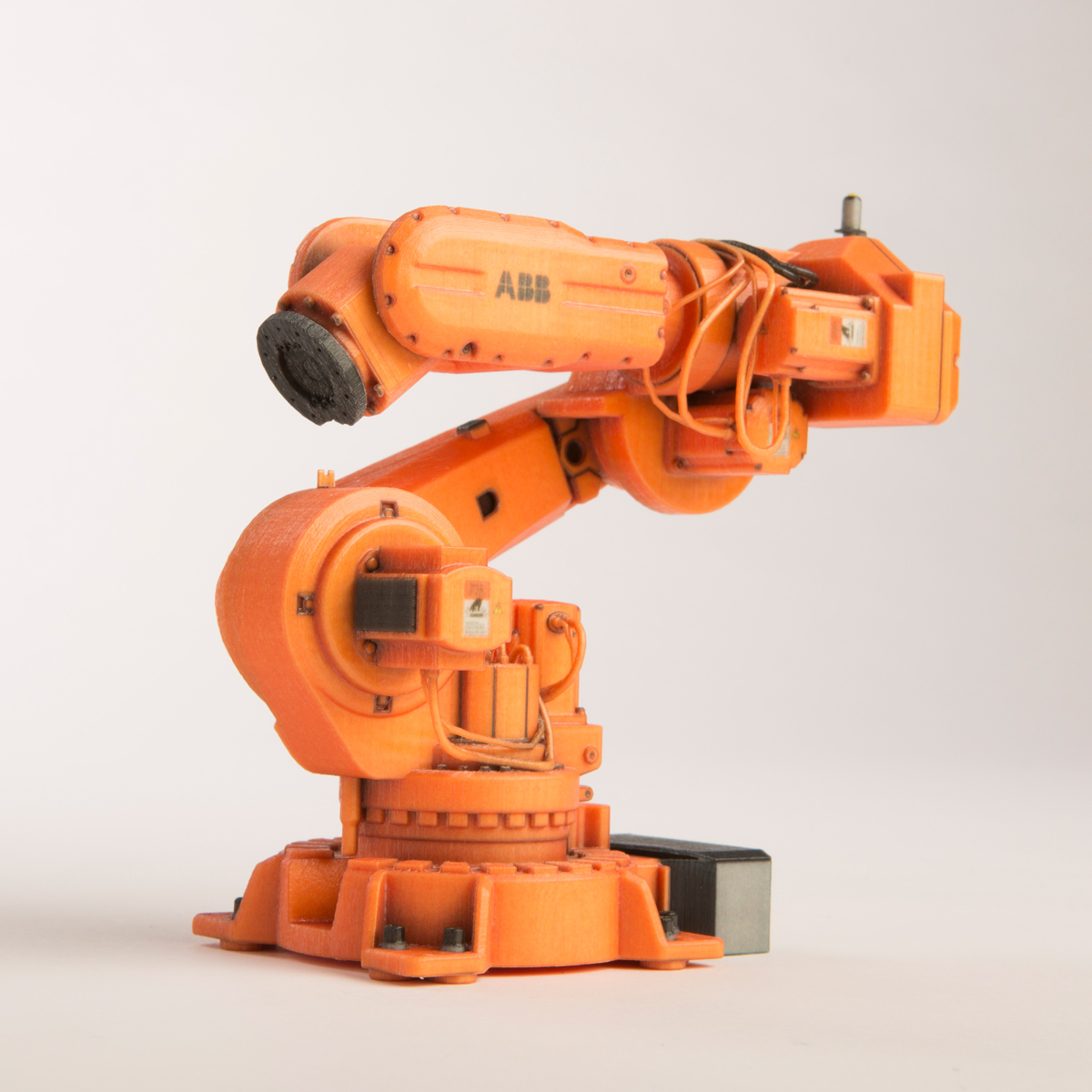

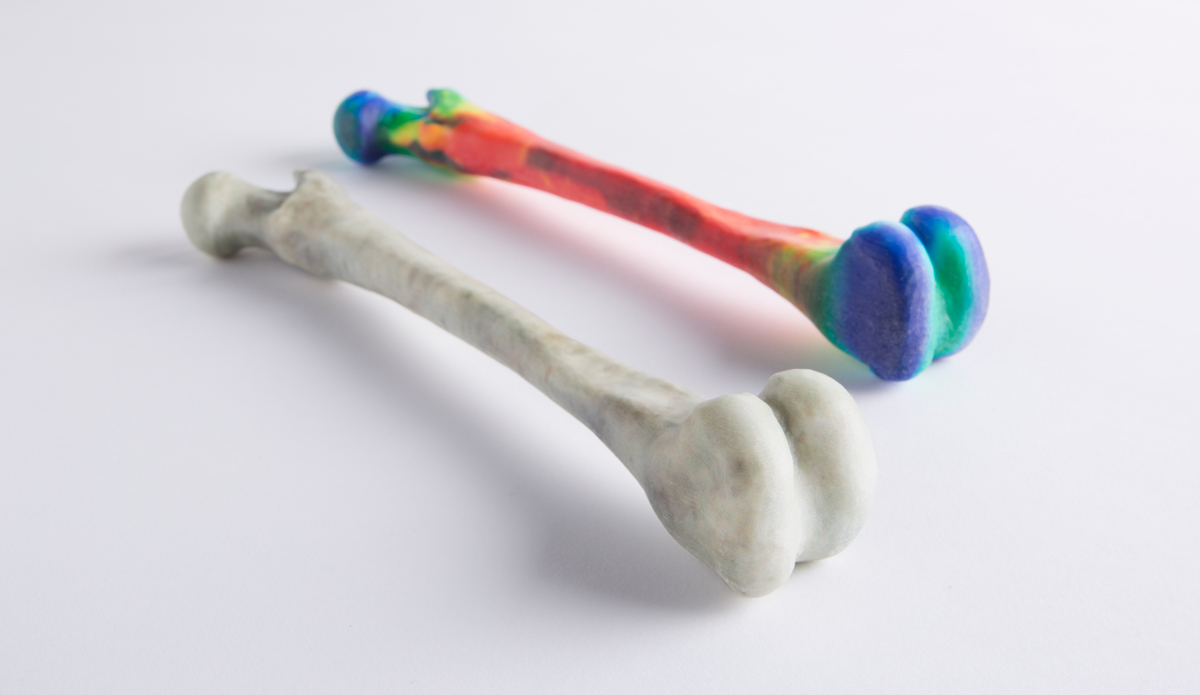

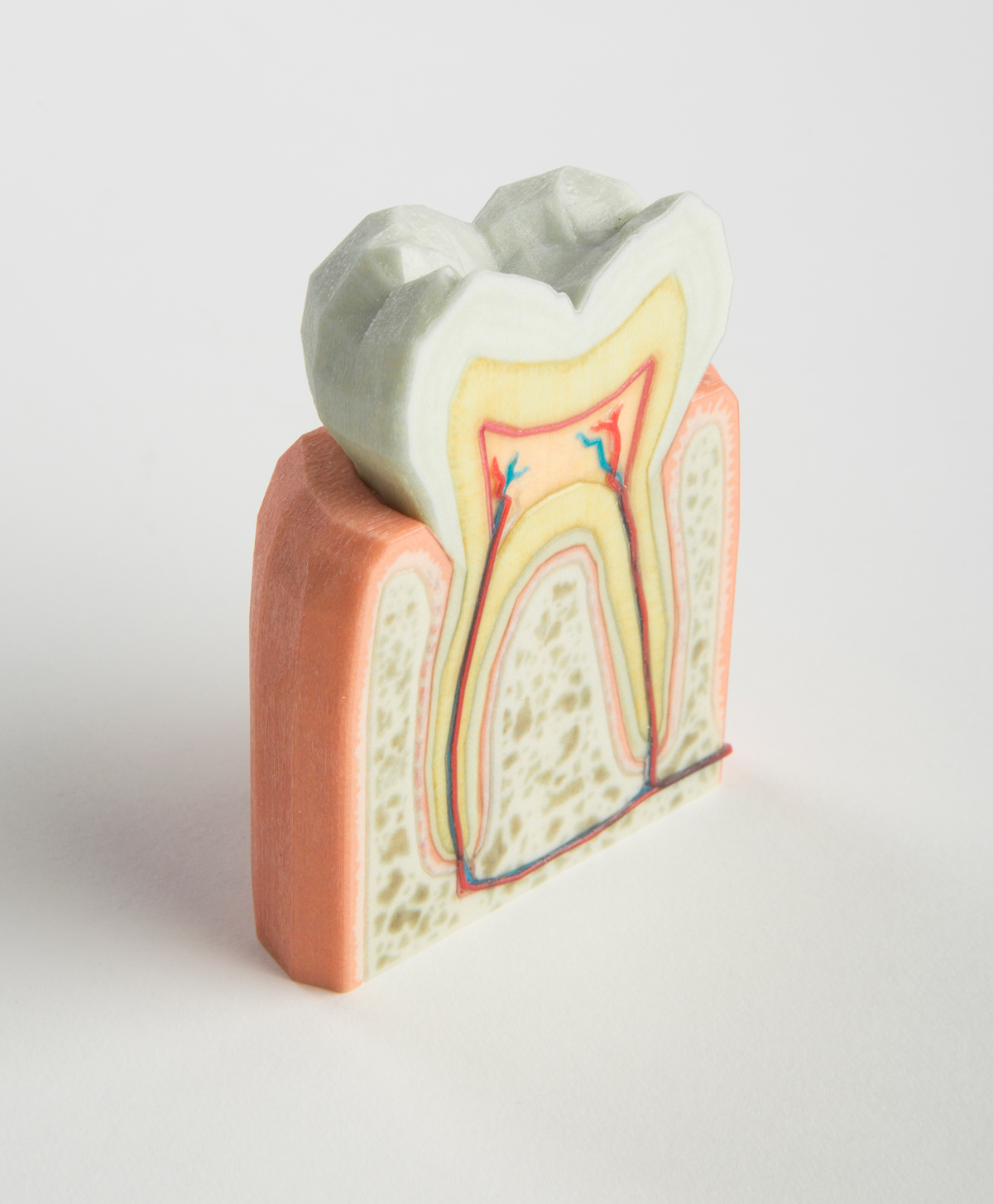

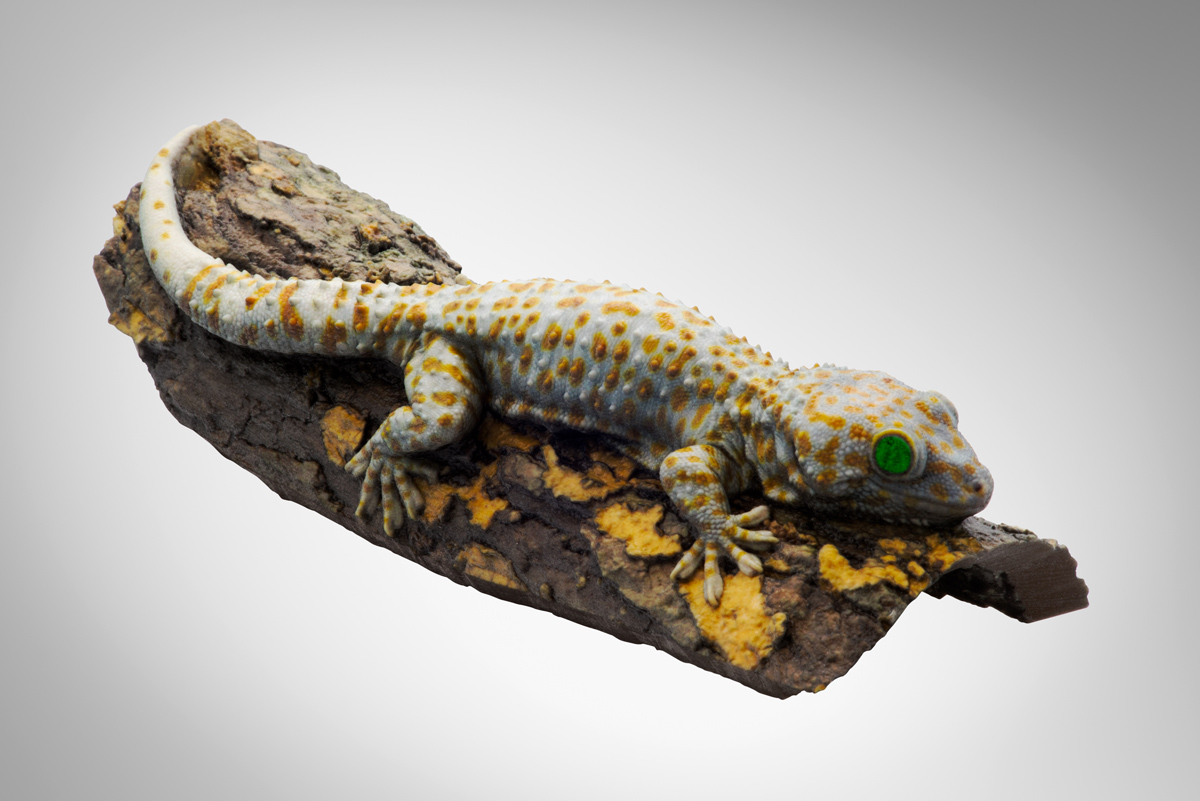

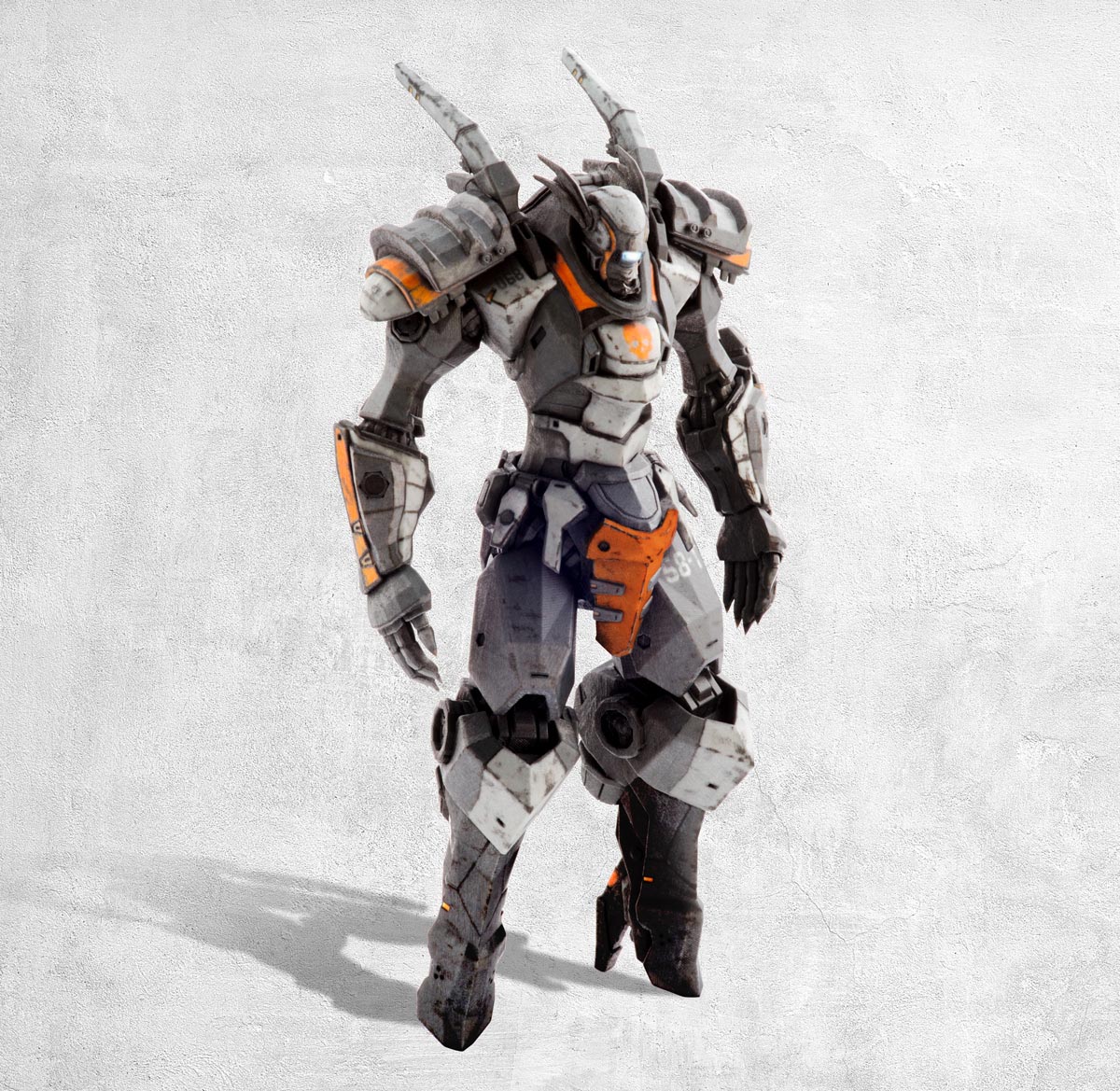

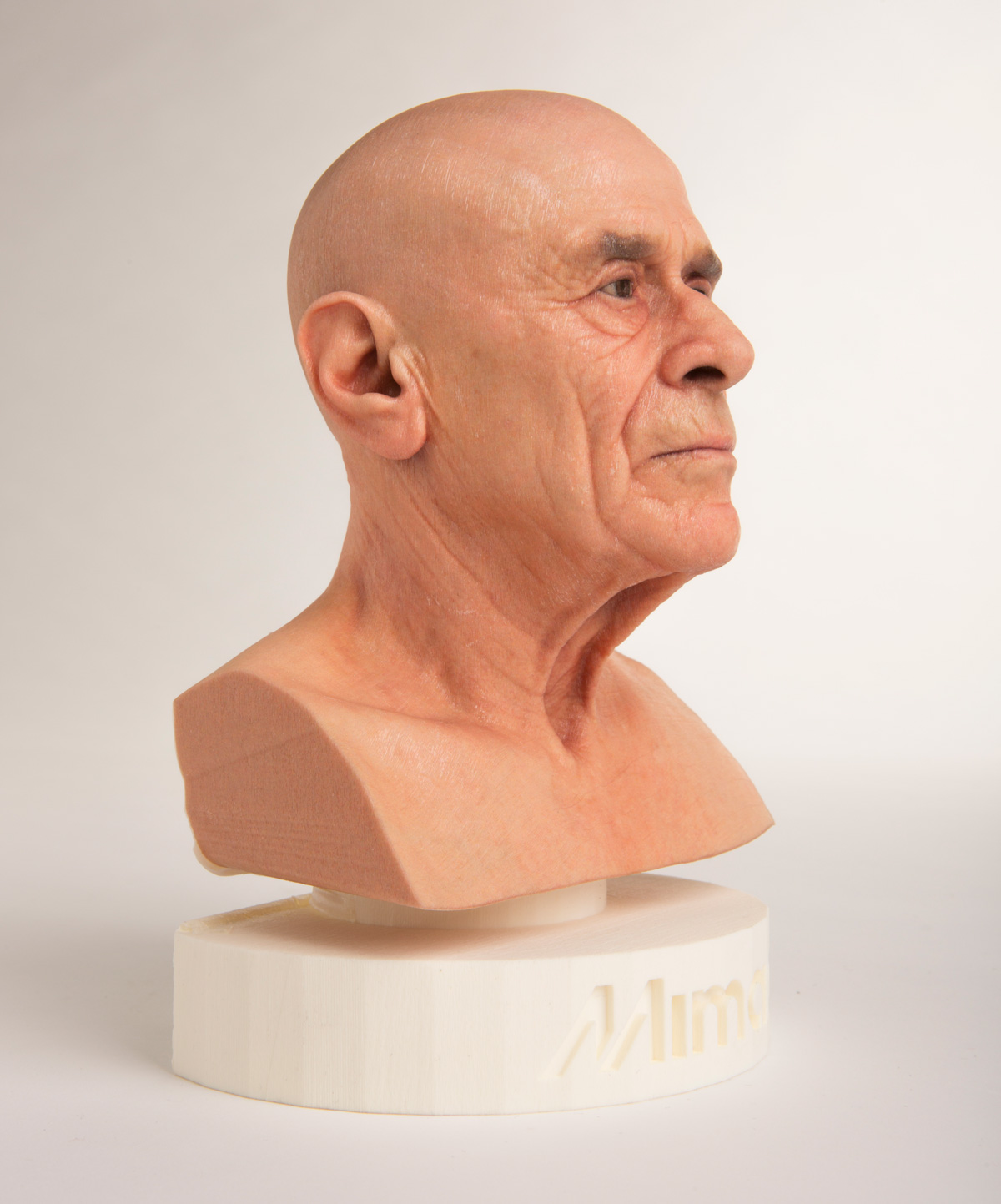

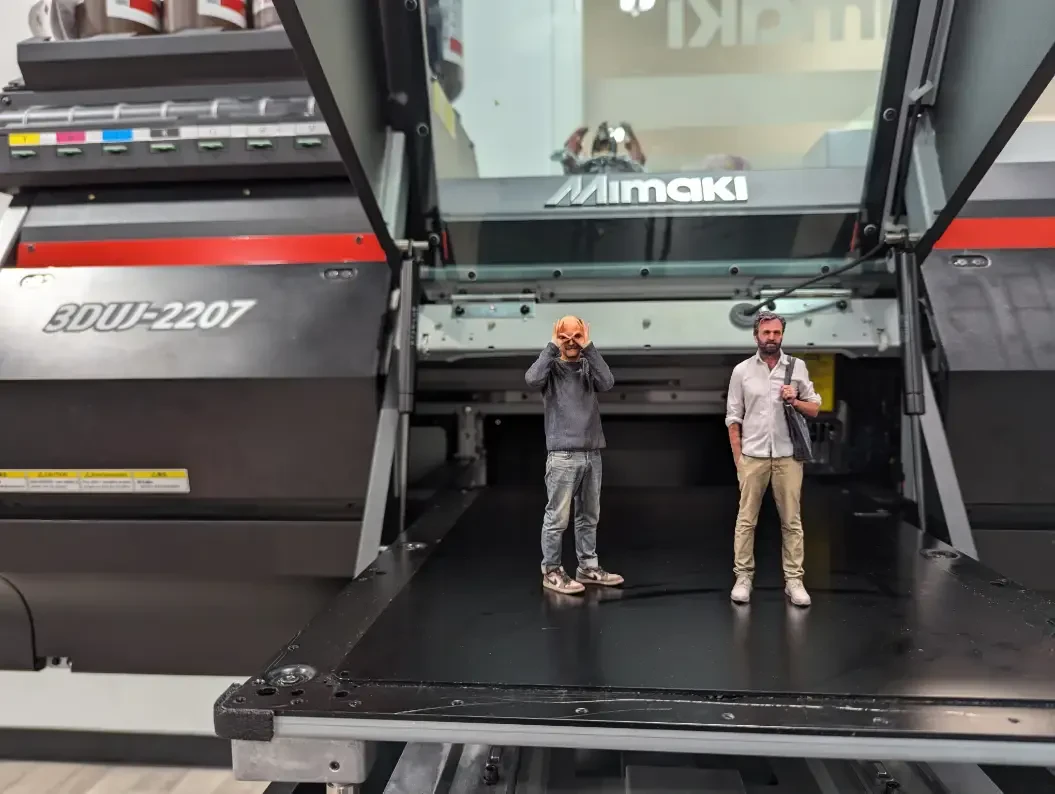

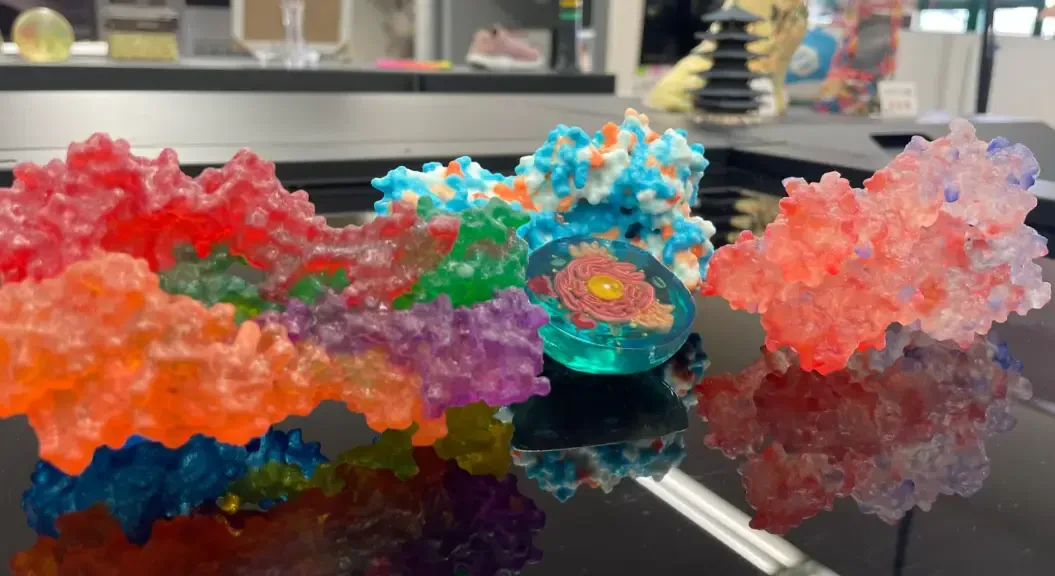

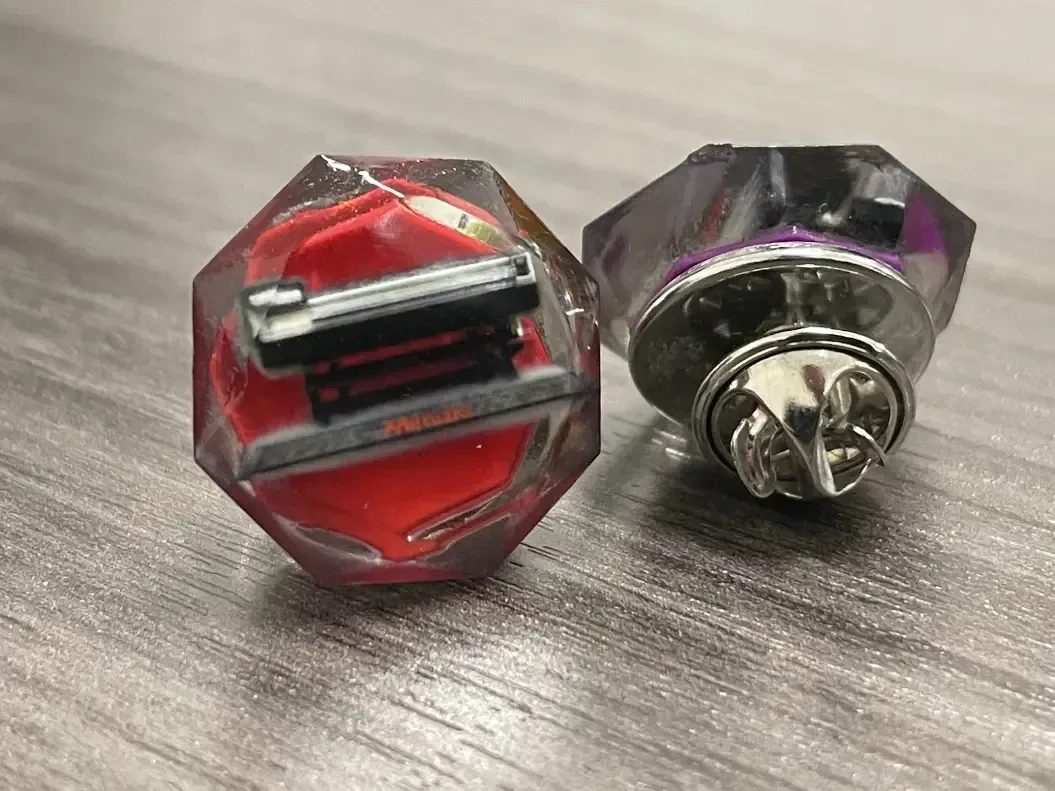

Applications

img img img img img img

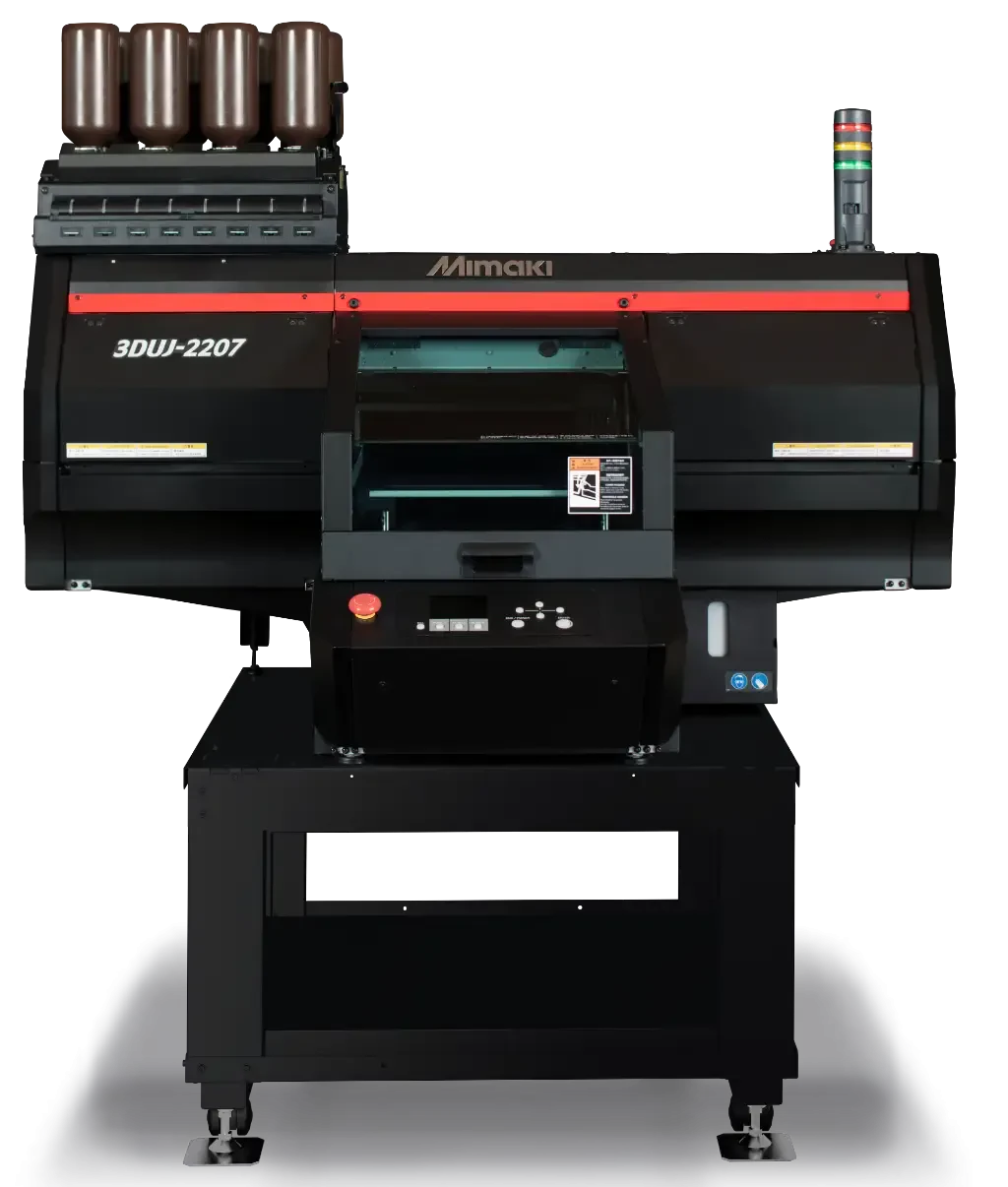

Specifications

Build Area (W × D × H)

8 x 8 x 3 inches (203 x 203 x 76 mm)

Color Range

More than 10 million

Print Mode / Resolution / Thickness
Standard/28 micron
Curing
Air-cooled LED-UV Lamp x1
File Formats

SSTL, OBJ, VRML, PLY, 3MF,

Interface

Ethernet 1000 BASE-T

Operational Environment

Temperature: 68-86°F (20-30°C)
Humidity: 35 – 60% RH
Accuracy guaranteed temp: 68-77°F (20-25°C)

Power

Single-phase (AC100-120V / 220-240V, ± 10%, 50 / 60Hz ± 1Hz) x 1

Power Consumption

350 W Or less
When using deodorizer (optional): 500 W or less

Outer Dimension (W x D x H)
53.3 x 50.7 x 33.7 inches (1,355 x 1,290 x 856 mm)
Weight

309lbs / 140kg

Layer thickness

28μm

Resolution
1200 x 1200 DPI
Software

Mimaki 3DLink

Options
  • Printer Stand
  • Air Filter
Safety Standards

VCCI-classA, FCC ClassA, UL62368-1,
CE marking (EMC directive, low voltage directive, mechanical directive)
CB certification, RoHS compliant, Reach compliant, EAC, RCM

Inks

3D Modeling Ink (MH-100)CyanMagentaYellowBlackWhiteClear
1L BottleMH100-C-BAMH100-M-BAMH100-Y-BAMH100-K-BAMH100-W-BAMH100-CL-BA

*Inks sold vary by county, see specification chart above for details.

3D Support Ink (SW-110)Support
1L BottleSW110-Z-BA

Inks

3D Modeling Ink (MH-100)
1L Bottle
Cyan:
MH100-C-BA
Magenta:
MH100-M-BA
Yellow:
MH100-Y-BA
Black:
MH100-K-BA
White:
MH100-W-BA
Clear:
MH100-CL-BA
:
_ _
:
_ _
:
_ _
:
_ _
3D Support Ink (SW-110)
1L Bottle
Support:
SW110-Z-BA
