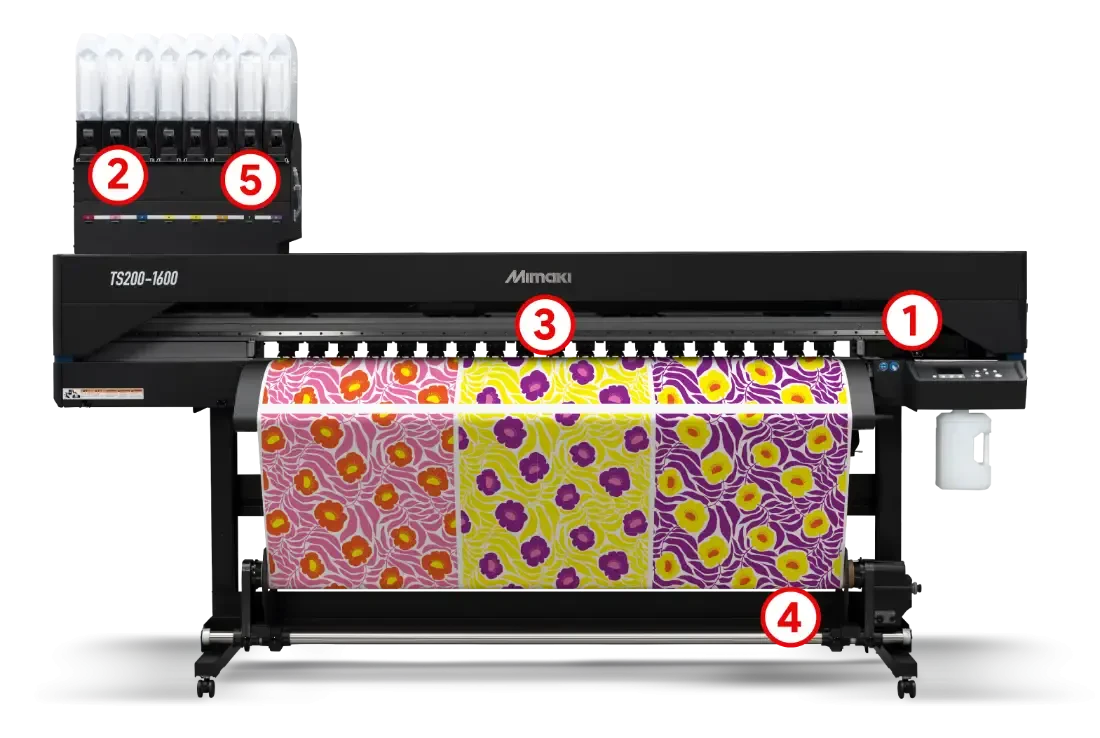

Waveform Control
Variable Dot Technology
Mimaki Advanced Pass System
Nozzle Check Unit
Nozzle Recovery System
Mimaki Bulk Ink System
Uninterrupted Ink Supply System
Mimaki Fine Diffusion
Mimaki Circulation Technology

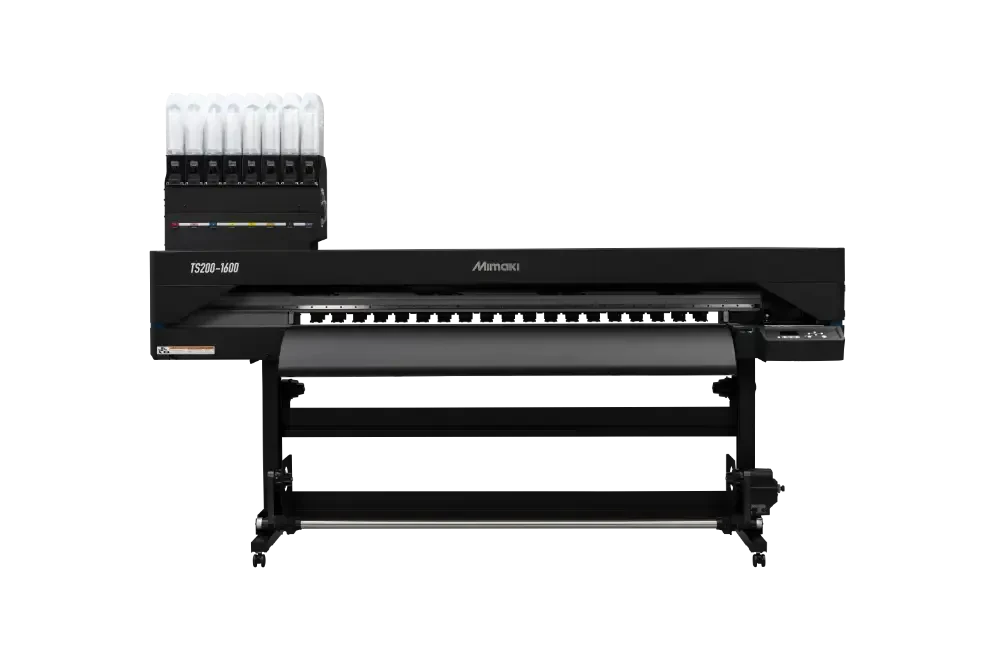

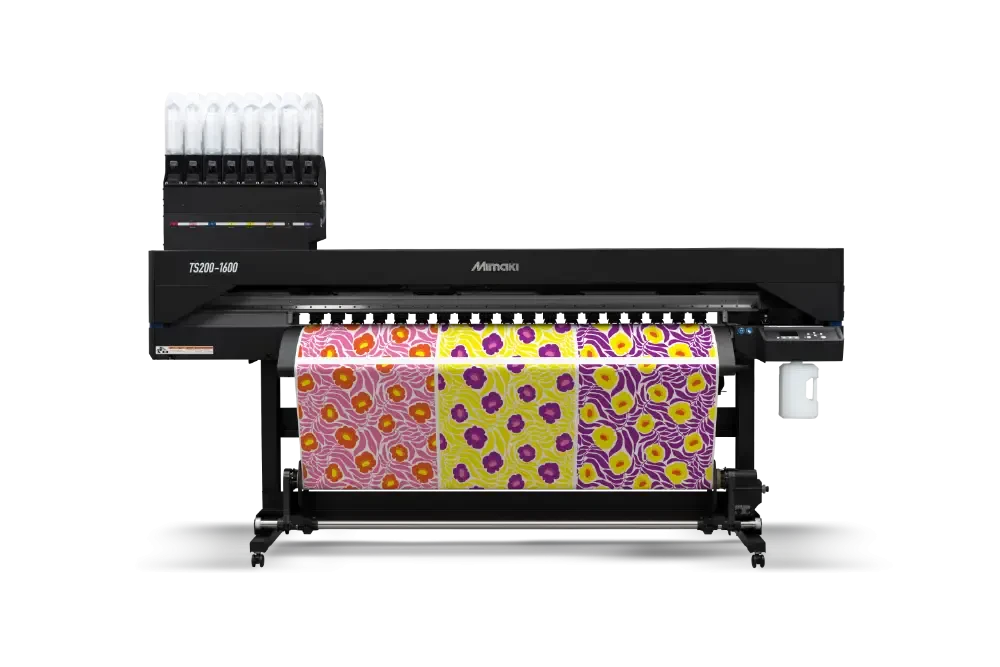

| Printhead | Single, on-demand, piezo print head
|
| Print resolution | Y:300,600,900 dpi | X:600 dpi
|
| Print speed (4 color mode) | 753.5 sqft/hr (70 sqm/hr) |
| Type/Color Sb411 | 4color: Bl M Y K 8color: Bl M Y K Vi Or Fy Fp |
| Maximum Print width | 63.3 inch (1610 mm)
|
| Maximum media width | 63.7 inch (1620 mm)
|
| Maximum Thickness | 0.039 inches (1.0 mm)
|
| Roll Weight | (a) 55.1 lb. (25.0 kg) (b) 99.2 lb. (45.0 kg) – with installation of a foot leveling kit (Opt-J0502)
|
| Ink Package Size | 2L ink pack |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC, UKCA
|
| Interface | Ethernet 1000BASE-T (Recommended), USB2.0 Hi-Speed
|
| Power Supply | AC100~120V/200~240V±10% 3A 50/60Hz±1Hz |
| Power Consumption | Max. 250W or less |
| Operational Environment | Temperature: 68˚ to 86˚ F (20˚ to 30˚ C) Humidity: 35% to 65%
|
| Dimensions (W × D × H) | 109 in x 29.4 in x 63.8 in (2770 mm x 748 mm x 1623 mm)
|
| Weight (uncrated) | 341.7 lbs. (155.0 kg)
|
| Dye Sublimation Ink (Sb411) | Blue | Magenta | Yellow | Black | Violet | Orange | Fluorescent Pink | Fluorescent Yellow |
|---|---|---|---|---|---|---|---|---|
| 2L ink pack | SB411-BLT-2L | SB411-MT-2L | SB411-YT-2L | SB411-KT-2L | SB411-VT-2L | SB411-ORT-2L | SB411-FPT-2L | SB411-FYT-2L |
| Dye Sublimation Ink (Sb411) | |
|---|---|
| 2L ink pack |
|
