List Price (USD):
Valid in USA and Canada only

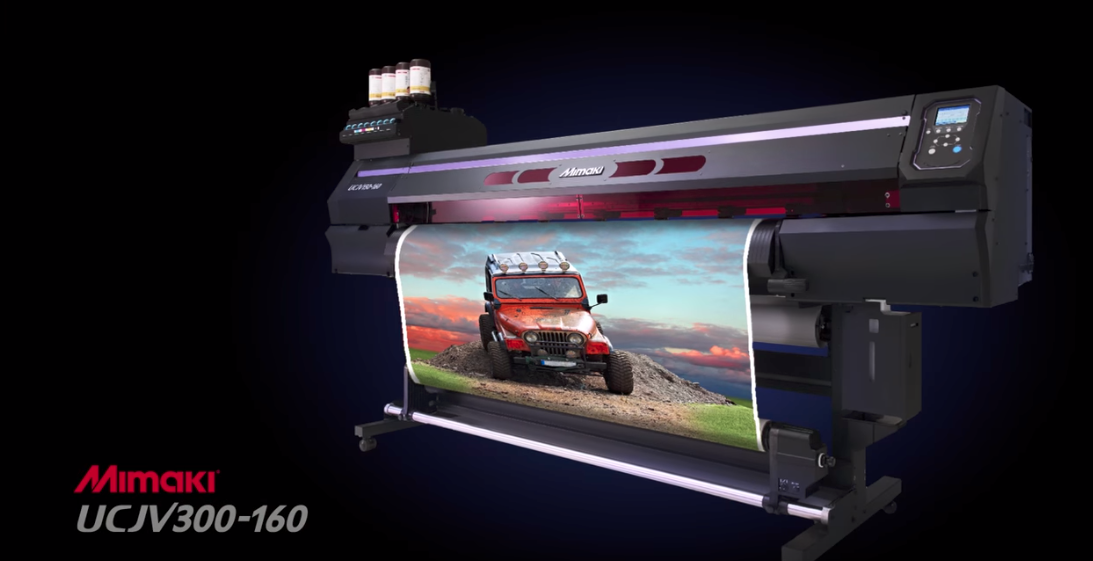

UCJV300-75
UCJV300-107: $18,895
UCJV300-130: $23,095
UCJV300-160: $24,145
See Promo Offers

Leading The Way For UV-LED Technology

Mimaki is proud to continue paving the way in UV-LED printing. Our revolutionary technologies have enabled us to improve print quality, speed, and versatility. The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs. Our state-of-the-art print-and-cut machines offer benefits such as:
  • Available in 32”, 42”, 54”, and 64” with print speeds up to 277.7 SqFt/Hr
  • Highest media versatility with unparalleled scratch resistance
  • Print and cut capability in one unit
  • Instantly cured prints for shorter turnarounds and additional cost savings
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • 3M™ MCS™ Warranty on LUS-200 inks and Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200 inks
  • RIP software RasterLink6 Plus with ID cut function included

Our Core Technologies


Waveform Control


Mimaki Advanced Pass System


Nozzle Check Unit


Nozzle Recovery System


Mimaki Bulk Ink System


Uninterrupted Ink Supply System


Mimaki Circulation Technology


Mimaki Fine Diffusion


Continuous Mark Detect


Half Cut


Over Cut


Zero Margin Mark


ID Cut

Applications

img img img img img img img img

Specifications

Print head

Two in-line on-demand piezo heads

Print Resolutions

300dpi, 600dpi, 900dpi, 1200dpi

Print Speed (4 Color Mode)

UCJV300-75: up to 152.8 SqFt/Hr (14.2 m2/h)
UCJV300-107: up to 183 SqFt/Hr (17 m2/h)
UCJV300-130: up to 205.6 SqFt/Hr (19.1 m2/h)
UCJV300-160: up to 195.9 SqFt/Hr (25.8 m2/h)

Maximum Print Area

UCJV300-75: 31.5″ (800 mm)
UCJV300-107: 42.9″ (1090 mm)
UCJV300-130: 53.6″ (1361 mm)
UCJV300-160: 63.4″ (1610 mm)

Maximum media width

UCJV300-75: 31.9″ (810 mm)
UCJV300-107: 43.3″ (1100 mm)
UCJV300-130: 54″ (1371 mm)
UCJV300-160: 63.8″ (1620 mm)

Maximum Media Thickness

up to 0.04″ (1 mm)

Maximum Media Weight

88.2 lbs. (40.0 kg)

Ink Type

U.S. & Canada- LUS-170, LUS-200 | Mexico, Central & South America- LUS-175, LUS-200

Cut Speed

16.5″ sec (42.0 cm/sec)

Maximum Cut pressure (Metric grams)

450

Cutter Types

Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen

Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply

Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2

Power Consumption

AC100V: 1.44kW or less x2 / AC200V: 1.92kW or less x2

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

UCJV300-75: 81.496″ x 30.551″ x 58.071″ (207 x 77.6 x 147.5 cm)
UCJV300-107: 92.913″ x 30.551″ x 58.071″ (236 x 77.6 x 147.5 cm)
UCJV300-130: 103.543″ x 30.551″ x 85.071″ (263 x 77.6 x 216.1 cm)
UCJV300-160: 114.2″ x 30.6″ x 58.1″ (290.1 x 77.7 x 147.6 cm)

Weight

UCJV300-75: 317.5 lbs. (144 kg)
UCJV300-107: 354.9 lbs. (161 kg)
UCJV300-130: 379.3 lbs. (172 kg)
UCJV300-160: 414.5 lbs. (188 kg)

Certifications

VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM

Inks

UV Curable Ink (LUS170)CyanMagentaYellowBlackLight CyanLight MagentaWhiteClear
1L BottleLUS17-C-BALUS17-M-BALUS17-Y-BALUS17-K-BALUS17-W-BALUS17-CL-BA

UV Curable Ink (LUS175)CyanMagentaYellowBlackLight CyanLight MagentaWhiteClear
1L BottleLUS175-C-BALUS175-M-BALUS175-Y-BALUS175-K-BALUS175-W-BALUS175-CL-BA

UV Curable Ink (LUS200)CyanMagentaYellowBlackLight CyanLight MagentaWhite
1L BottleLUS20-C-BALUS20-M-BALUS20-Y-BALUS20-K-BALUS20-W-BA

Inks

UV Curable Ink (LUS170)
1L Bottle
Cyan:
LUS17-C-BA
Magenta:
LUS17-M-BA
Yellow:
LUS17-Y-BA
Black:
LUS17-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS17-W-BA
Clear:
LUS17-CL-BA
:
_ _
:
_ _
UV Curable Ink (LUS175)
1L Bottle
Cyan:
LUS175-C-BA
Magenta:
LUS175-M-BA
Yellow:
LUS175-Y-BA
Black:
LUS175-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS175-W-BA
Clear:
LUS175-CL-BA
:
_ _
:
_ _
UV Curable Ink (LUS200)
1L Bottle
Cyan:
LUS20-C-BA
Magenta:
LUS20-M-BA
Yellow:
LUS20-Y-BA
Black:
LUS20-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS20-W-BA
:
_ _
:
_ _
:
_ _

Contact Mimaki

Mimaki offers a full range of UV and other roll-to-roll printers, including the UCJV300 Series. Contact us at 888-530-3988 with any questions or to schedule your demo today.
