List Price (USD):
Valid in USA and Canada only
UJF200-3042: $29,995
UJF200-6042: $39,995

More Possibilities, One Printer.

The Mimaki UJF200 Series is a benchtop UV-LED flatbed printer designed for direct printing onto rigid and dimensional objects. The series includes UJF200-3042 model and supports objects up to 9.8 inches (250 mm) thick and up to 44 lb (20 kg). The platform uses a high-precision single printhead with minimum 3 pL droplet control and MAPS4 technology for smooth gradients, fine lettering, and reduced banding. Available ink configurations include CMYK, white, clear, primer, light colors, and fluorescent pink and yellow. Optional camera and belt systems expand the platform from manually loaded direct-to-object printing into automated positioning and continuous production workflows.
  • 9.8 in head height clearance
  • 24” x 16.5” print area
  • Advanced capacity table up to 44 lb
  • Fluorescent ink configurations
  • High-quality 1800 x 1800 resolution with 3 pL drop
  • Optional Camera and Belt table for jig-less and unattended production
  • Simplified and faster automated cleaning
  • LD1 and LD2 profiles for uneven surfaces up to 6 mm
  • Advanced automated texture features including Braille
  • ELS and ELH eco-friendly advanced formulation inks
  • Accepts Kebab Mk and Kebab HS Series cylindrical options

Our Core Technologies


Mimaki Fine Diffusion


Mimaki Advanced Pass System


Waveform Control


Nozzle Check Unit


Nozzle Recovery System


Mimaki Circulation Technology

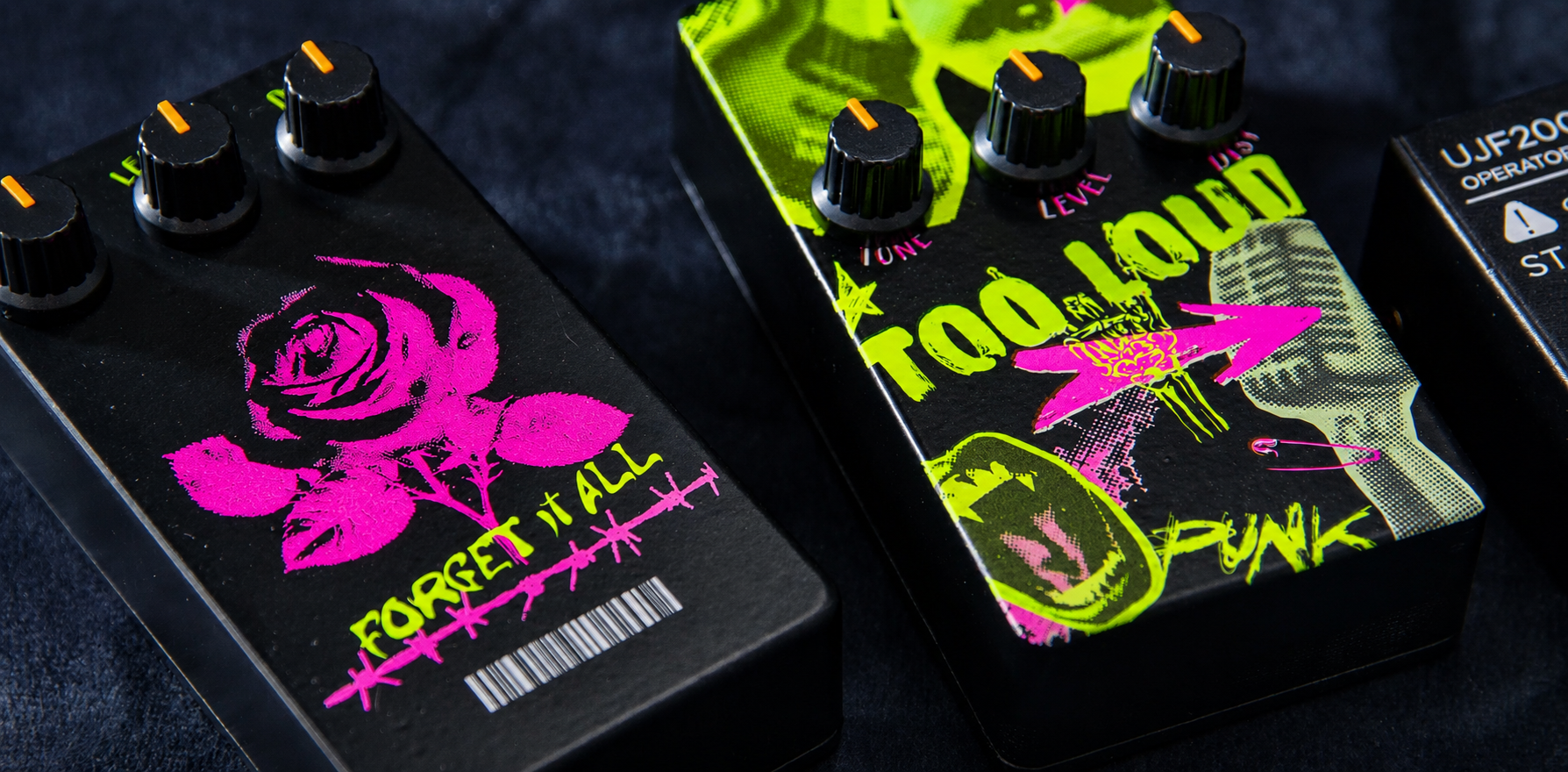

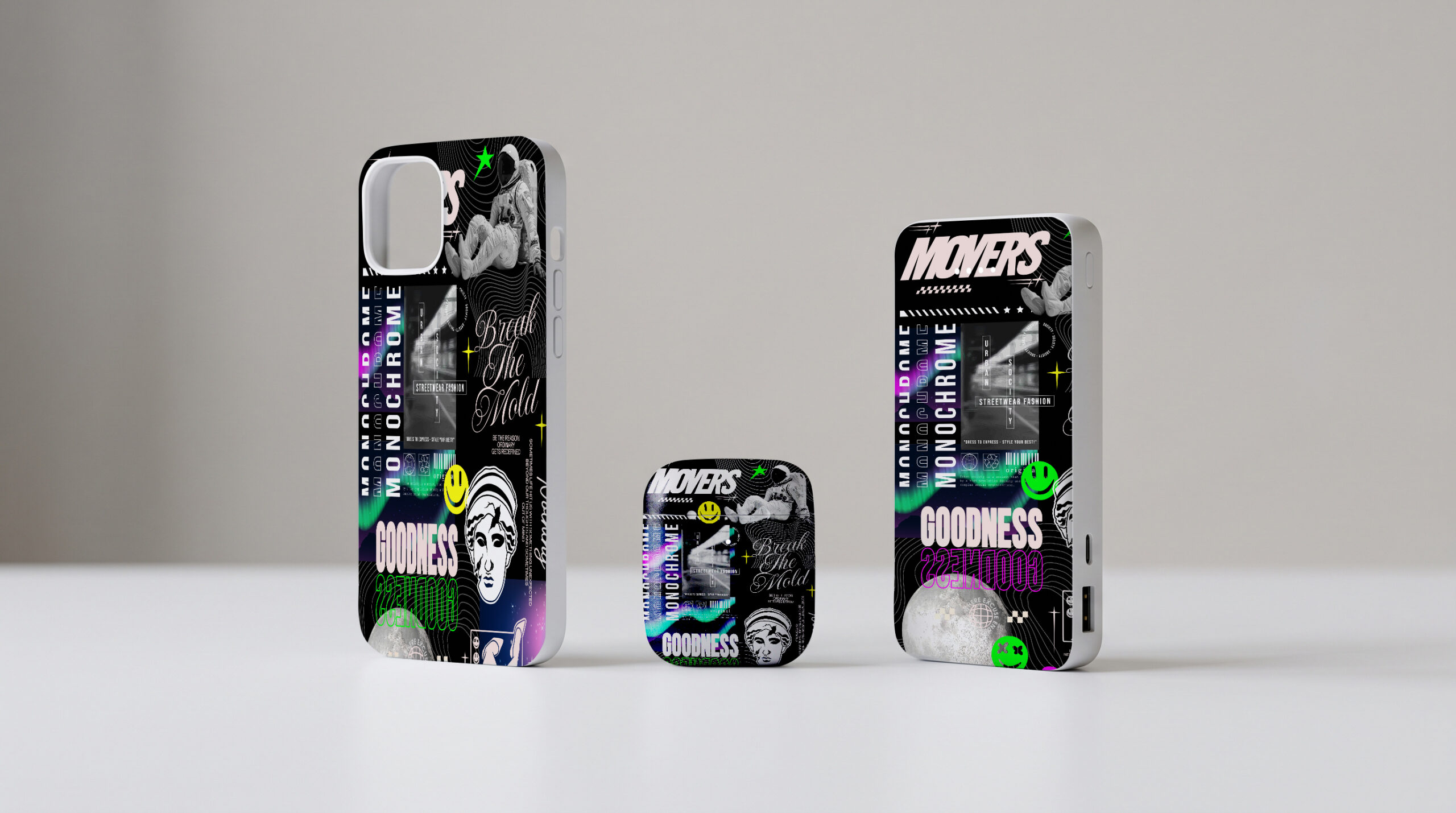

Applications

img img img img img img img img img img

Specifications

Printhead

on-demand piezo head

Print Resolutions

600, 900, 1,200, 1,800 dpi

Print Speed (4 Color Mode)

Up to 11.3 tables per hour (including wiping cycles)

Maximum Print Area

UJF200-3042: 11.8 in x 16.5 in (300 mm x 420mm)
UJF200-6042: 24 in x 16.5 in (610 mm x 420 mm)

Maximum Media Thickness

up to 9.8 in (250 mm)

Maximum Media Weight

44 lb (20 kg)

Ink Type / Color

Hard UV curable ink : ELH-100 (C, M, Y, K, Lc, Lm, W, Cl)
Flexible UV curable ink : ELS-120 (C, M, Y, K, Lc, Lm, W, Cl)
Flexible UV curable ink : EFS-150 (Fp, Fy) *Use in combination with the above inks.
Primer : PR-200 *Use in combination with UV curable inks.

Ink package size

250 ml bottle / 1 L bottle

Interface

USB 2.0 / Ethernet 1000BASE-T

Power Supply

Single phase AC100 – 240 V ±10% /5A 50 / 60 Hz ±1Hz

Power Consumption

Maximum 450 W or less,
Standard 250 W
Minimum 4.5 W or less

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non-condensing)

Dimensions (W × D × H)

UJF200-3042:54.3 in x 45.9 in x 31.4 in (1,380 mm x 1,166mm x 798mm)
UJF200-6042: 66.1 in x 45.9 in x 31.4 in (1,680 mm x 1,166mm x 798mm)

Weight (uncrated)

UJF200-3042: 377 lbs (171 kg)
UJF200-6042: 412 lbs (187 kg)

Options
  • OPT-01034 Dedicated mounting stand
  • OPT-01032 Ionizer Unit 60
  • OPT-J0424 Exhaust fan unit
  • OPT-01050 Pilot Lamp OPT
  • OPT-J0433 KebabMK Ⅱ L
  • OPT-J0528 Kebab HS
  • OPT-J0515 Deodorizer option
  • OPT-J0521 MDL Gateway
Certifications

VCCI class A / FCC class A / ETL IEC 62368-1 /CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH



Inks

UV curable ink (ELH-100)

UV curable ink (ELS-120)

UV curable ink (EFS-150)
250ml Bottle
1L Bottle

Inks

UV curable ink (ELH-100)
UV curable ink (ELS-120)
UV curable ink (EFS-150)
250ml Bottle
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
1L Bottle
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _

Frequently Bought Together

The Kebab option for UJF Series offers 360-degree direct printing on a wide range of objects, such as stainless steel tumblers, bottles, cans, vases, packaging and candle holders. This accessory is easily mounted to the printer’s flatbed table and functions intuitively via our RasterLink6 software.

Kebab

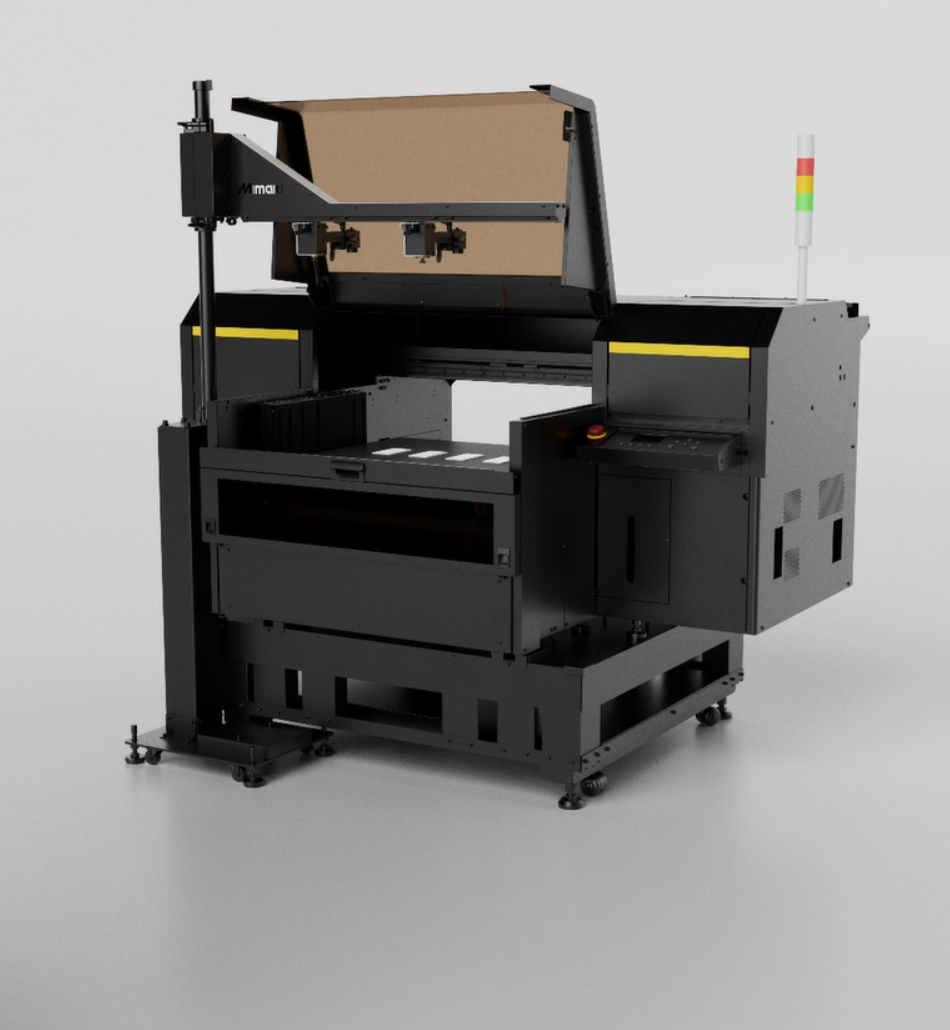

The camera detects the position and shape of the media and automatically positions the print data within the software. This significantly reduces the manual work required to arrange media.

Applicable printer: UJF200 flatbed UV printer

Camera-Based Media Detection and Automatic Data Positioning
