Unparalleled results to expand your business

With a choice of inks, including white and clear, these flatbeds deliver endless options to print to a wide range of substrates. Seamlessly create signage, posters, wayfinding, decorative panels and more.

JFX200-2513:

  • Print on one 4’ x 8’ board or a variety of pre-cut pieces up to 2” thick
  • Maximum print speed of up to 8 boards per hour
  • Dual-zoned vacuum table and user-adjustable layout pins
  • Uninterrupted Ink Supply System included
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • RIP software RasterLink6 included

JFX200-2513 EX:

  • Print on one 4’ x 8’ board or a variety of pre-cut pieces up to 2” thick
  • Maximum print speed of up to 12 boards per hour
  • Three staggered printheads for simultaneous printing when using white and clear inks
  • Foot pedal to easily control vacuum when loading media
  • Dual-zoned vacuum table and user-adjustable layout pins
  • Nozzle Check Unit included
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • Updated RIP software RasterLink6 Plus to support 2.5D textured print workflows

JFX200-2531:

  • Print single sheets up to 8’ x 10’, dual sheets up to 4’ x 8’ or a variety of pre-cut pieces
  • Dual origin points to increase productivity
  • Two independent vacuum pumps and user-adjustable layout pins
  • Standard ionizer bar reduces static-related print issues
  • Uninterrupted Ink Supply System included
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • RIP software RasterLink6 included

Our Core Technologies


Waveform Control


Variable Dot Technology


Mimaki Advanced Pass System


Nozzle Recovery System


Mimaki Bulk Ink System


Mimaki Circulation Technology


Mimaki Fine Diffusion

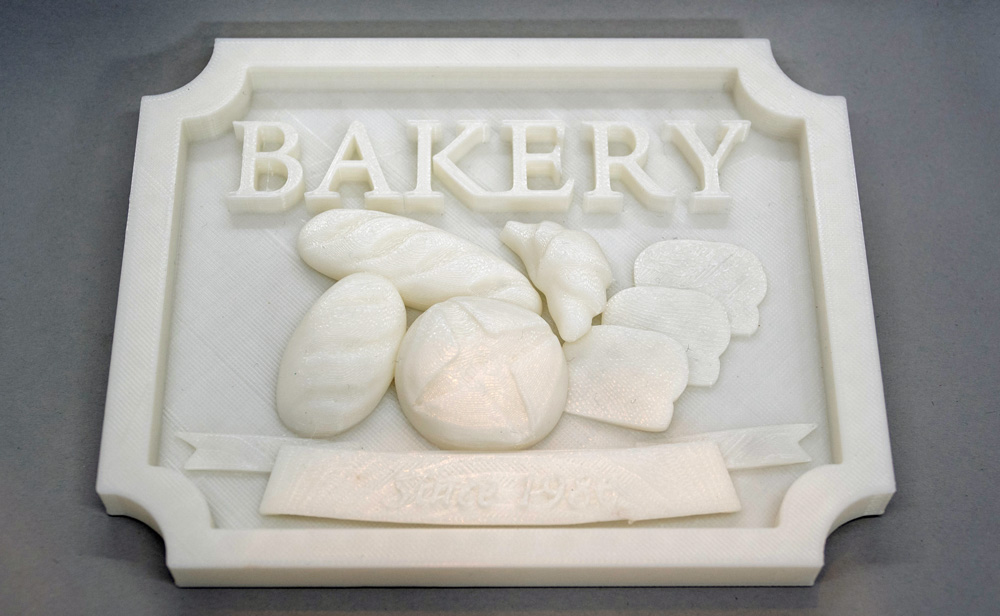

Applications

img img img img img img img img img img

Specifications

Printhead

JFX200-2513: Two on-demand piezo heads in a staggered array
JFX200-2513 EX: Three on-demand piezo heads in a staggered array
JFX200-2531: Two on-demand piezo heads in a staggered array

Print resolution

JFX200-2513: 300, 450, 600, 900, 1,200dpi
JFX200-2513 EX: 300, 450, 600, 900, 1,200dpi

Print Speed (4 Color Mode)

JFX200-2513: up to 243 SqFt/Hr (22.6 m2/h)
JFX200-2513 EX: up to 343 SqFt/Hr (31.9 m2/h)
JFX200-2531: up to 243 SqFt/Hr (22.6 m2/h)

Maximum Print Area

JFX200-2513 & JFX200-2513 EX: 98.4″ x 51.2″ (2500 x 1300 mm)
JFX200-2531: 98.4″ x 122.0″ (2500 x 3100 mm)

Maximum media width

98.4″ (2500 mm)

Maximum Media Thickness

up to 1.97″ (50 mm)

Maximum Media Weight

110.3 lbs. (50.0 kg)

Ink Type

JFX200-2513 & JFX200-2531: U.S. & Canada- LH-100, LUS-120, LUS-150, LUS-200, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-150, LUS-200, LUS-350
JFX200-2513 EX: U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150

Interface

JFX200-2513 & JFX200-2531: USB2.0 Hi-speed
JFX200-2513 EX: Ethernet 1000BASE-T USB2.0 Hi-speed

Power Supply

JFX200-2513 & JFX200-2513 EX: Single phase, 200 V AC-240 V AC, 50 Hz/60 Hz, less than 12 A

JFX200-2531: Single-phase AC200-240V 12A or less, 8A or less (Two inlets)

Power Consumption

JFX200-2513: AC200V: 2.88 kVA or less
JFX200-2513 EX: AC200V: 2.88 kVA or less
JFX200-2531: AC200V: 4.8 kVA

Operational Environment

Temperature 59° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

JFX200-2513 & JFX200-2513 EX: 173.2″ x 96.4″ x 49.2″ (439.9 x 244.9 x 125 cm)
JFX200-2531: 173.2″ x 168.9″ x 49.2″ (439.9 x 429 x 125 cm)

Weight

JFX200-2513 & JFX200-2513 EX: 1433 lbs. (650 kg)
JFX200-2531: 2205 lbs. (1000 kg)

Certifications

JFX200-2513: VCCI class A, CE Marking, CB Report, UL (U.S. safety organization), RoHS directive, UL 60950-1, FCC class A

JFX200-2513 EX: VCCI class A, CE mark, CB report, U.S. safety standard UL (UL62368-1), RoHS Directive, FCC Class A, Machinery directive, EAC, RCM

JFX200-2531: VCCI CLASS A / FCC CLASS A / ETL UL60950-1 /CB / CE Marking (EMC, Low voltage, machinery directive and RoHS)

Inks

JFX200-2513 CyanMagentaYellowBlackLight CyanLight MagentaWhiteClearPrimer
UV Curable Ink (LH-100) 1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA
UV Curable Ink (LUS-120) 1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA LUS12-W-BA LUS12-CL-BA
UV Curable Ink (LUS-150) 1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-LC-BA LUS15-LM-BA LUS15-W-BA (Use LH-100)
UV Curable Ink (LUS-200) 1L Bottle LUS20-C-BA LUS20-M-BA LUS20-Y-BA LUS20-K-BA LUS20-W-BA
UV Curable Ink (LUS-350) 1L Bottle LUS35-C-BA LUS35-M-BA LUS35-Y-BA LUS35-K-BA LUS35-W-BA LUS35-CL-BA
UV Primer (PR-100) 1L Bottle PR-100-Z-BA
UV Primer (PR-200) 1L Bottle PR-200-Z-BA

JFX200-2513 EX CyanMagentaYellowBlackLight CyanLight MagentaWhiteClearPrimer
UV Curable Ink (LH-100) 1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA
UV Curable Ink (LUS-120) 1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA LUS12-W-BA LUS12-CL-BA
UV Curable Ink (LUS-150) 1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-LC-BA LUS15-LM-BA LUS15-W-BA LUS15-CL-BA
UV Primer (PR-200) 1L Bottle PR200-Z-BA

JFX200-2531 CyanMagentaYellowBlackLight CyanLight MagentaWhiteClearPrimer
UV Curable Ink (LH-100) 1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA
UV Curable Ink (LUS-120) 1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA LUS12-W-BA LUS12-CL-BA
UV Curable Ink (LUS-150) 1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-LC-BA LUS15-LM-BA LUS15-W-BA (Use LH-100)
UV Curable Ink (LUS-200) 1L Bottle LUS20-C-BA LUS20-M-BA LUS20-Y-BA LUS20-K-BA LUS20-W-BA
UV Curable Ink (LUS-350) 1L Bottle LUS35-C-BA LUS35-M-BA LUS35-Y-BA LUS35-K-BA LUS35-W-BA LUS35-CL-BA
UV Primer (PR-100) PR100-Z-BA
UV Primer (PR-200) PR-200-Z-BA

Inks

JFX200-2513
UV Curable Ink (LH-100) 1L Bottle
Cyan:
LH100-C-BA
Magenta:
LH100-M-BA
Yellow:
LH100-Y-BA
Black:
LH100-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LH100-W-BA
Clear:
LH100-CL-BA
Primer:
_ _
UV Curable Ink (LUS-120) 1L Bottle
Cyan:
LUS12-C-BA
Magenta:
LUS12-M-BA
Yellow:
LUS12-Y-BA
Black:
LUS12-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS12-W-BA
Clear:
LUS12-CL-BA
Primer:
_ _
UV Curable Ink (LUS-150) 1L Bottle
Cyan:
LUS15-C-BA
Magenta:
LUS15-M-BA
Yellow:
LUS15-Y-BA
Black:
LUS15-K-BA
Light Cyan:
LUS15-LC-BA
Light Magenta:
LUS15-LM-BA
White:
LUS15-W-BA
Clear:
(Use LH-100)
Primer:
_ _
UV Curable Ink (LUS-200) 1L Bottle
Cyan:
LUS20-C-BA
Magenta:
LUS20-M-BA
Yellow:
LUS20-Y-BA
Black:
LUS20-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS20-W-BA
Clear:
_ _
Primer:
_ _
UV Curable Ink (LUS-350) 1L Bottle
Cyan:
LUS35-C-BA
Magenta:
LUS35-M-BA
Yellow:
LUS35-Y-BA
Black:
LUS35-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS35-W-BA
Clear:
LUS35-CL-BA
Primer:
_ _
UV Primer (PR-100) 1L Bottle
Cyan:
_ _
Magenta:
_ _
Yellow:
_ _
Black:
_ _
Light Cyan:
_ _
Light Magenta:
_ _
White:
_ _
Clear:
_ _
Primer:
PR-100-Z-BA
UV Primer (PR-200) 1L Bottle
Cyan:
_ _
Magenta:
_ _
Yellow:
_ _
Black:
_ _
Light Cyan:
_ _
Light Magenta:
_ _
White:
_ _
Clear:
_ _
Primer:
PR-200-Z-BA
JFX200-2513 EX
UV Curable Ink (LH-100) 1L Bottle
Cyan:
LH100-C-BA
Magenta:
LH100-M-BA
Yellow:
LH100-Y-BA
Black:
LH100-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LH100-W-BA
Clear:
LH100-CL-BA
Primer:
_ _
UV Curable Ink (LUS-120) 1L Bottle
Cyan:
LUS12-C-BA
Magenta:
LUS12-M-BA
Yellow:
LUS12-Y-BA
Black:
LUS12-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS12-W-BA
Clear:
LUS12-CL-BA
Primer:
_ _
UV Curable Ink (LUS-150) 1L Bottle
Cyan:
LUS15-C-BA
Magenta:
LUS15-M-BA
Yellow:
LUS15-Y-BA
Black:
LUS15-K-BA
Light Cyan:
LUS15-LC-BA
Light Magenta:
LUS15-LM-BA
White:
LUS15-W-BA
Clear:
LUS15-CL-BA
Primer:
_ _
UV Primer (PR-200) 1L Bottle
Cyan:
_ _
Magenta:
_ _
Yellow:
_ _
Black:
_ _
Light Cyan:
_ _
Light Magenta:
_ _
White:
_ _
Clear:
_ _
Primer:
PR200-Z-BA
JFX200-2531
UV Curable Ink (LH-100) 1L Bottle
Cyan:
LH100-C-BA
Magenta:
LH100-M-BA
Yellow:
LH100-Y-BA
Black:
LH100-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LH100-W-BA
Clear:
LH100-CL-BA
Primer:
_ _
UV Curable Ink (LUS-120) 1L Bottle
Cyan:
LUS12-C-BA
Magenta:
LUS12-M-BA
Yellow:
LUS12-Y-BA
Black:
LUS12-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS12-W-BA
Clear:
LUS12-CL-BA
Primer:
_ _
UV Curable Ink (LUS-150) 1L Bottle
Cyan:
LUS15-C-BA
Magenta:
LUS15-M-BA
Yellow:
LUS15-Y-BA
Black:
LUS15-K-BA
Light Cyan:
LUS15-LC-BA
Light Magenta:
LUS15-LM-BA
White:
LUS15-W-BA
Clear:
(Use LH-100)
Primer:
_ _
UV Curable Ink (LUS-200) 1L Bottle
Cyan:
LUS20-C-BA
Magenta:
LUS20-M-BA
Yellow:
LUS20-Y-BA
Black:
LUS20-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS20-W-BA
Clear:
_ _
Primer:
_ _
UV Curable Ink (LUS-350) 1L Bottle
Cyan:
LUS35-C-BA
Magenta:
LUS35-M-BA
Yellow:
LUS35-Y-BA
Black:
LUS35-K-BA
Light Cyan:
_ _
Light Magenta:
_ _
White:
LUS35-W-BA
Clear:
LUS35-CL-BA
Primer:
_ _
UV Primer (PR-100)
Cyan:
_ _
Magenta:
_ _
Yellow:
_ _
Black:
_ _
Light Cyan:
_ _
Light Magenta:
_ _
White:
_ _
Clear:
_ _
Primer:
PR100-Z-BA
UV Primer (PR-200)
Cyan:
_ _
Magenta:
_ _
Yellow:
_ _
Black:
_ _
Light Cyan:
_ _
Light Magenta:
_ _
White:
_ _
Clear:
_ _
Primer:
PR-200-Z-BA
