UJF-3042 MKII E: $24,250

Powerful Personalization On Demand

Designed to bring your ideas to reality, these professional tools deliver consistent quality for any level of production. You can create specialty items, awards, personalized products, component pieces and more.
  • Available in 11.8” x 16.5”; up to 6” thick
  • Enclosed print area reduces dust contamination and UV exposure
  • Mimaki Clear Control (MCC) for smoother, cleaner clear effects
  • RIP software RasterLink7 and MDL included
  • Enhanced Auto Maintenance Features
  • Pair with our desktop 3D printer to produce jigs, molds for thermoforming, or custom models
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks

As the successor model to the UJF-3042MkII, these compact flatbed printers offer all the production advantages of the previous version while providing improved image quality and greater machine stability. You can create a high volume of promotional items and other graphic products with the precise imagery and product customizations that only UV curable ink can create. The direct-printing capabilities of UV ink, in conjunction with the optional Kebab MkII unit, even allow you to print directly to cylindrical objects.

UJF-3042 MkII e UV flatbed printers do much more than offer product customization options. Each comes with a variety of user-friendly features that make it a valuable direct-to-substrate printing solution for modern companies. With this highly versatile printer, you can also automate printing control and job management operations from an external device. An optional deodorizing unit keeps any odors out of your workspace.

If you’re looking for a reliable low-cost printer with a range of color management features, consider the UJF-3042 MkII e Series.

Our Core Technologies


Mimaki Fine Diffusion


Advanced Pass System


Waveform Control


Nozzle Check Unit


Nozzle Recovery System


Mimaki Circulation Technology

Applications

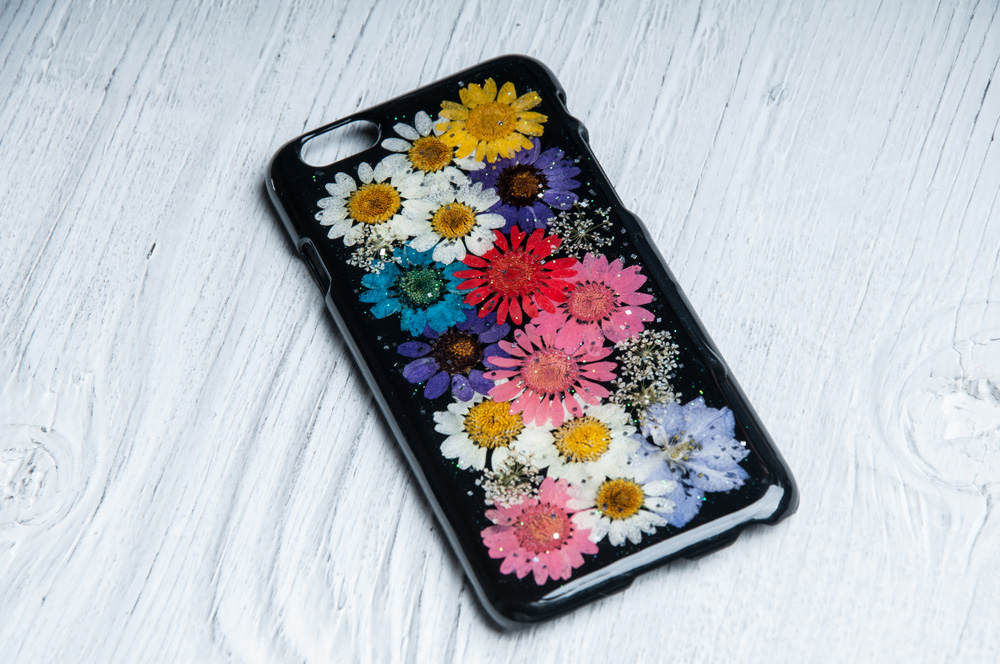

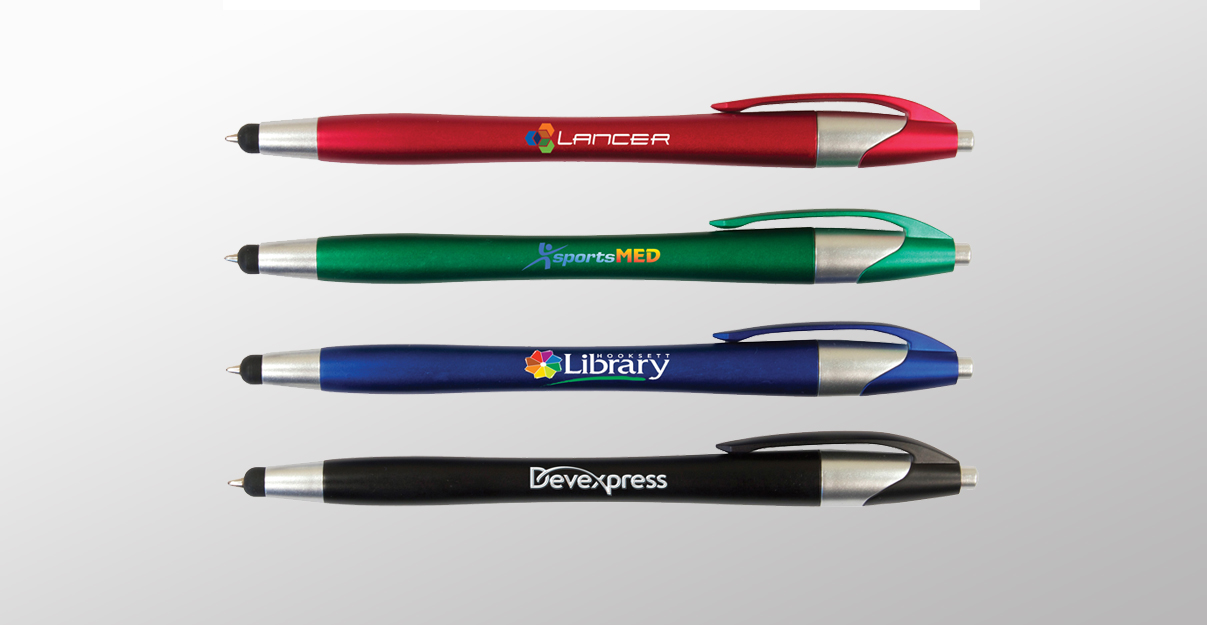

ball point pens with custom printed logos custom made conference hall sign with braille product packaging with custom printed design on carton box custom printed trophies and awards house key custom phone case with printed floral design serial plate with printed label industrial pressure meter custom printed membrane switch panels glass bottle with cork that displays a graphic printed inside the bottle

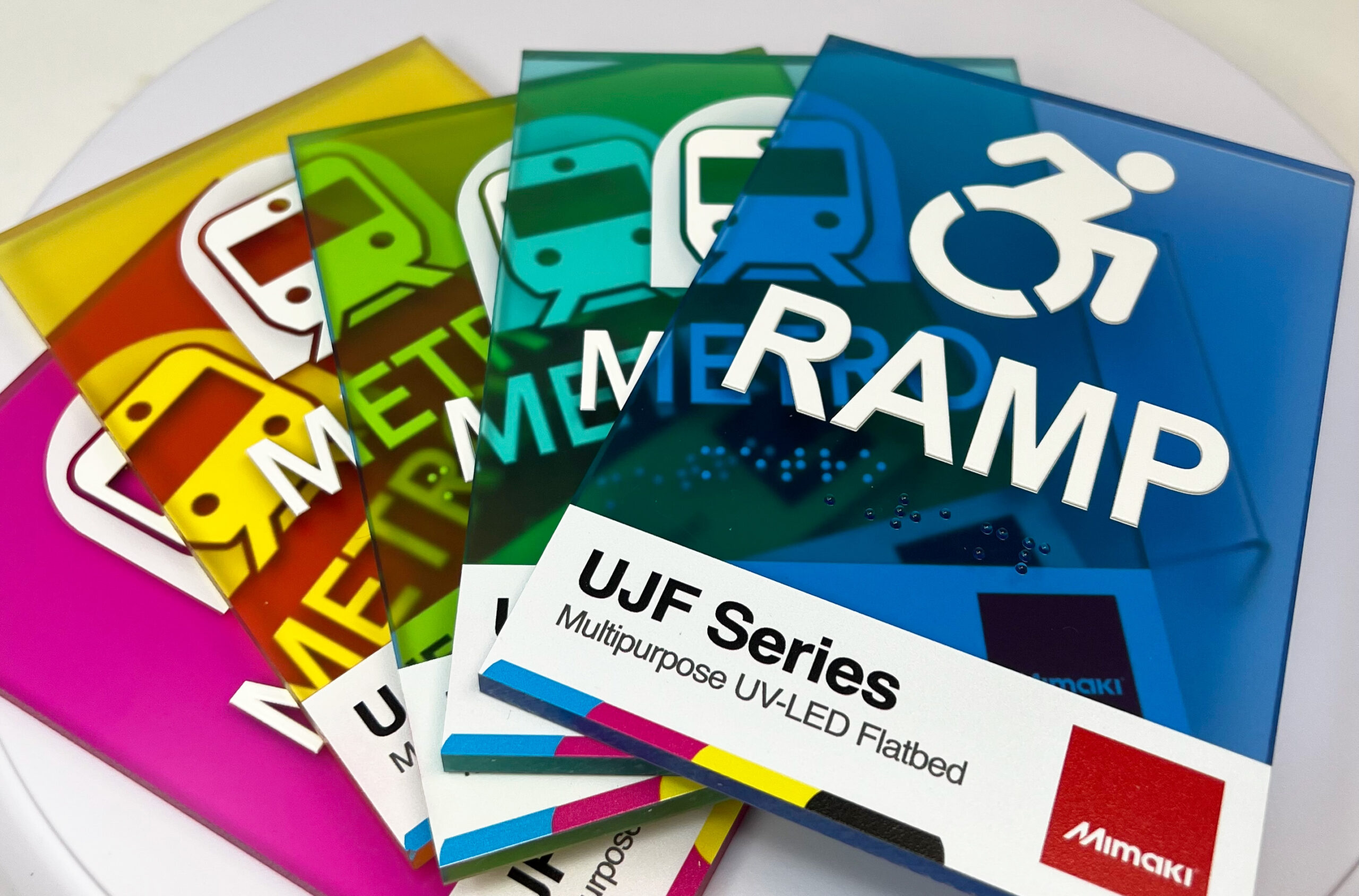

The UJF-3042 MkII e Series can be used to create UV printed graphics on a wide array of products, including but not limited to nameplates, business cards, pens, key chains, phone cases, indoor signs, water bottle labels, paper packaging, 3D lenticular surfaces, fishing lures, vent hole covers, battery chargers, digital foiling, membrane switches, pictograms, and many other types of unique surfaces, three-dimensional objects, and custom items.

Specifications

Printhead

UJF-3042MkII E: Three on-demand piezo heads in a staggered array

Print Resolutions

Maximum: 1200 x 1200 dpi

Print Speed

A throughput of 38 A4 prints per hour

Maximum Print Area

11.8″ x 16.5″ (300 x 420 mm)

Maximum media width

11.8″ (300 mm)

Maximum Media Thickness

up to 6.02″ (153 mm)

Maximum Media Weight

11.0 lbs. (5.0 kg)

Ink Type

U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150

Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply

Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz

Power Consumption

AC100V: 1,000W or less

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

53.4″ x 50.8″ x 33.7″ (135.6 x 129 x 85.6 cm)

Weight

297.6 lbs. (135 kg)

Certifications

VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1

Inks

UJF-3042 MkII UV Curable Ink (LH-100)CyanMagentaYellowBlackWhiteClear
250ml BottleI-LH100-C-B2-1I-LH100-M-B2-1I-LH100-Y-B2-1I-LH100-K-B2-1I-LH100-W-B2-1I-LH100-CL-B2-1
1L BottleLH100-C-BALH100-M-BALH100-Y-BALH100-K-BALH100-W-BALH100-CL-BA

UJF-3042 MkII Curable Ink (LUS-120)CyanMagentaYellowBlackWhiteClear
250ml BottleI-LUS12-C-B2-1I-LUS12-M-B2-1I-LUS12-Y-B2-1I-LUS12-K-B2-1I-LUS12-W-B2-1I-LUS12-CL-B2-1
1L BottleLUS12-C-BALUS12-M-BALUS12-Y-BALUS12-K-BALUS12-W-BALUS12-CL-BA

UJF-3042 MkII UV Curable Ink (LUS-150)CyanMagentaYellowBlackWhite
1L BottleLUS15-C-BALUS15-M-BALUS15-Y-BALUS-15-K-BALUS-15-W-BA

UJF-3042 MkII UV Primer (PR-200)Primer
250ml BottlePR200-Z-BA
1L BottlePR200-Z-BA

UJF-3042 MkII EX UV Curable Ink (LH-100)CyanMagentaYellowBlackWhiteClear
250ml BottleI-LH100-C-B2-1I-LH100-M-B2-1I-LH100-Y-B2-1I-LH100-K-B2-1I-LH100-W-B2-1I-LH100-W-B2-1
1L BottleLH100-C-BALH100-M-BALH100-Y-BALH100-K-BALH100-W-BALH100-W-BA

UJF-3042 MkII EX UV Curable Ink (LUS-120)CyanMagentaYellowBlackWhiteClear
250ml BottleI-LUS12-C-B2-1I-LUS12-M-B2-1I-LUS12-Y-B2-1I-LUS12-K-B2-1I-LUS12-W-B2-1I-LUS12-W-B2-1
1L BottleLUS12-C-BALUS12-M-BALUS12-Y-BALUS12-K-BALUS12-W-BALUS12-W-BA

UJF-3042 MkII EX UV Curable Ink (LUS-150)CyanMagentaYellowBlackWhite
1L BottleLUS-15-C-BALUS-15-M-BALUS-15-Y-BALUS-15-K-BALUS-15-W-BA

UJF-3042 MkII EX UV Primer (PR-200)Primer
250ml BottlePR200-Z-BA
1L BottlePR200-Z-BA

Inks

UJF-3042 MkII UV Curable Ink (LH-100)
250ml Bottle
Cyan:
I-LH100-C-B2-1
Magenta:
I-LH100-M-B2-1
Yellow:
I-LH100-Y-B2-1
Black:
I-LH100-K-B2-1
White:
I-LH100-W-B2-1
Clear:
I-LH100-CL-B2-1
1L Bottle
Cyan:
LH100-C-BA
Magenta:
LH100-M-BA
Yellow:
LH100-Y-BA
Black:
LH100-K-BA
White:
LH100-W-BA
Clear:
LH100-CL-BA
UJF-3042 MkII Curable Ink (LUS-120)
250ml Bottle
Cyan:
I-LUS12-C-B2-1
Magenta:
I-LUS12-M-B2-1
Yellow:
I-LUS12-Y-B2-1
Black:
I-LUS12-K-B2-1
White:
I-LUS12-W-B2-1
Clear:
I-LUS12-CL-B2-1
1L Bottle
Cyan:
LUS12-C-BA
Magenta:
LUS12-M-BA
Yellow:
LUS12-Y-BA
Black:
LUS12-K-BA
White:
LUS12-W-BA
Clear:
LUS12-CL-BA
UJF-3042 MkII UV Curable Ink (LUS-150)
1L Bottle
Cyan:
LUS15-C-BA
Magenta:
LUS15-M-BA
Yellow:
LUS15-Y-BA
Black:
LUS-15-K-BA
White:
LUS-15-W-BA
UJF-3042 MkII UV Primer (PR-200)
250ml Bottle
Primer:
PR200-Z-BA
1L Bottle
Primer:
PR200-Z-BA
UJF-3042 MkII EX UV Curable Ink (LH-100)
250ml Bottle
Cyan:
I-LH100-C-B2-1
Magenta:
I-LH100-M-B2-1
Yellow:
I-LH100-Y-B2-1
Black:
I-LH100-K-B2-1
White:
I-LH100-W-B2-1
Clear:
I-LH100-W-B2-1
1L Bottle
Cyan:
LH100-C-BA
Magenta:
LH100-M-BA
Yellow:
LH100-Y-BA
Black:
LH100-K-BA
White:
LH100-W-BA
Clear:
LH100-W-BA
UJF-3042 MkII EX UV Curable Ink (LUS-120)
250ml Bottle
Cyan:
I-LUS12-C-B2-1
Magenta:
I-LUS12-M-B2-1
Yellow:
I-LUS12-Y-B2-1
Black:
I-LUS12-K-B2-1
White:
I-LUS12-W-B2-1
Clear:
I-LUS12-W-B2-1
1L Bottle
Cyan:
LUS12-C-BA
Magenta:
LUS12-M-BA
Yellow:
LUS12-Y-BA
Black:
LUS12-K-BA
White:
LUS12-W-BA
Clear:
LUS12-W-BA
UJF-3042 MkII EX UV Curable Ink (LUS-150)
1L Bottle
Cyan:
LUS-15-C-BA
Magenta:
LUS-15-M-BA
Yellow:
LUS-15-Y-BA
Black:
LUS-15-K-BA
White:
LUS-15-W-BA
UJF-3042 MkII EX UV Primer (PR-200)
250ml Bottle
Primer:
PR200-Z-BA
1L Bottle
Primer:
PR200-Z-BA

Frequently Bought Together

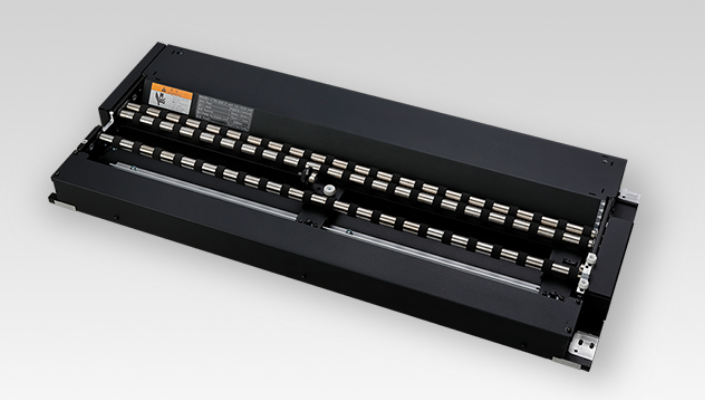

Kebab for UJF Series Printers

The Kebab option for UJF Series offers 360-degree direct printing on a wide range of objects, such as stainless steel tumblers, bottles, cans, vases, packaging and candle holders. This accessory is easily mounted to the printer’s flatbed table and functions intuitively via our RasterLink6 software.

Kebab

Kebab for UJF Series Printers

This 3D machine, co-branded with Sindoh, utilizes fused filament fabrication technology to form three-dimensional objects.

3DFF-222

Contact Mimaki

Apart from the UJF-3042 MkII e Series, Mimaki offers a variety of world-class printing and manufacturing solutions at affordable prices. These tools provide a number of product personalization options and deliver high-speed productivity. Contact us at 888-530-3988 with any questions you have or to schedule a demo.
