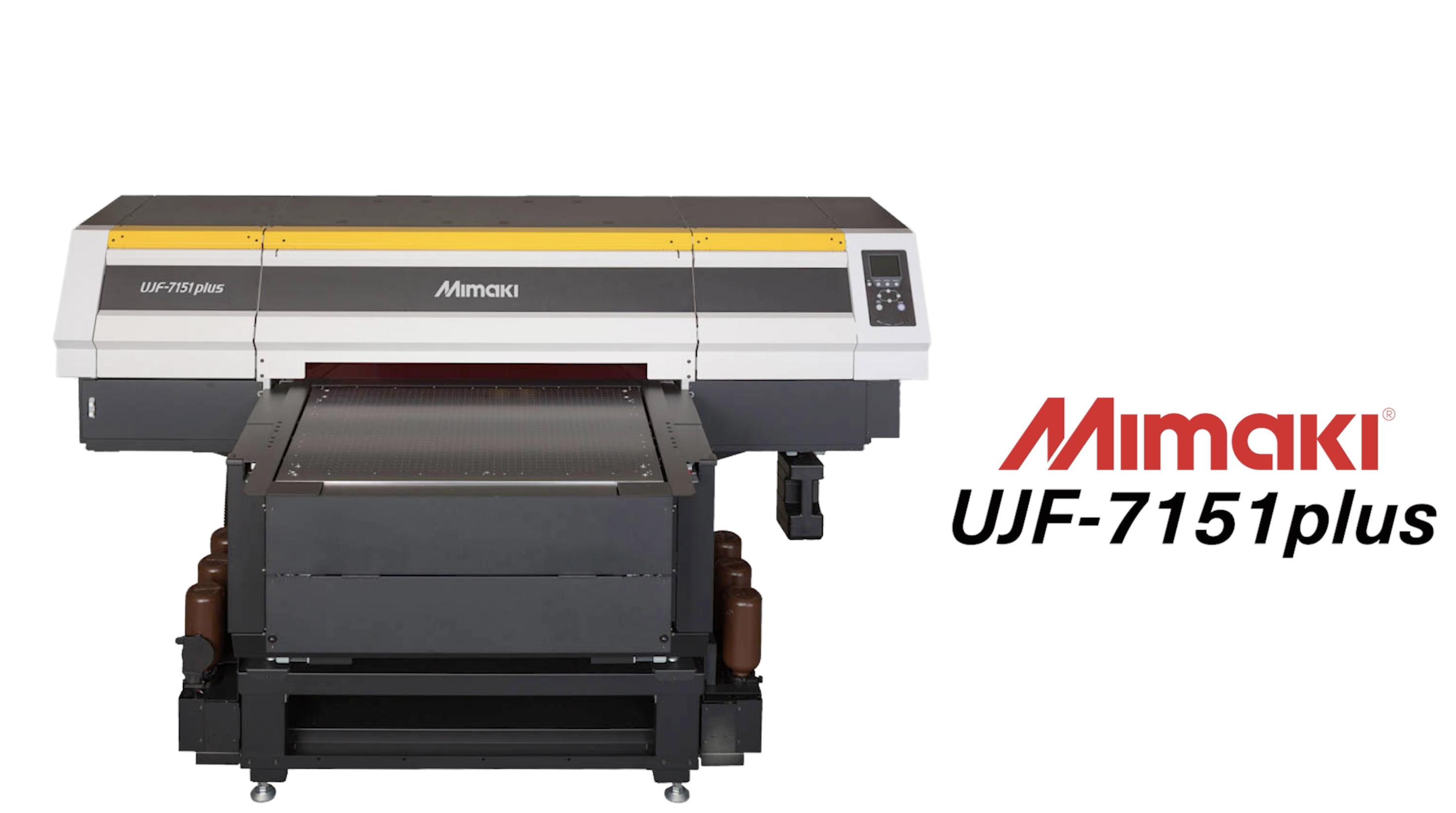

Most robust small format UV-LED flatbed on the market

This state-of-the-art model is geared for on-demand printing. Both its compact size and full line of features are ideal for creating specialty graphics or signage; or for customization, manufacturing and just-in-time production.
  • Print area of 28” x 20”; up to 6” thick
  • Print on a variety of substrates, including plastic, metal, wood, leather and glass
  • Enclosed print area reduces dust contamination and UV exposure
  • All ink channels offer Mimaki Circulation Technology
  • Automated head height control
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks

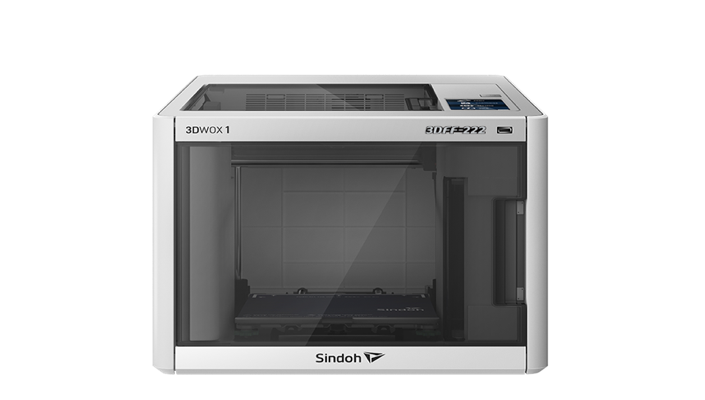

  • Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom models
  • RIP software RasterLink6 included

Our Core Technologies


Waveform Control


Mimaki Advanced Pass System


Nozzle Check Unit


Nozzle Recovery System


Mimaki Bulk Ink System


Mimaki Circulation Technology


Mimaki Fine Diffusion

Applications

img img img img img img img img img img

Specifications

Printhead

Six on-demand piezo heads in a staggered array

Print Resolutions

1,200 dpi

Print Speed (4 Color Mode)

up to 5.2 min / bed SqFt/Hr (5.2 min / bed m2/h)

Maximum Print Area

27.9″ x 20.0″ (710 × 510 mm)

Maximum media width

28.7″ (730 mm)

Maximum Media Thickness

up to 6.02″ (153 mm)

Maximum Media Weight

22.0 lbs. (10.0 kg)

Ink Type

U.S. & Canada- LH-100, LUS-120, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-350

Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply

Single-phase AC100 – 120V / AC200 – 240V

Power Consumption

AC100V: 1.3kW or less

Operational Environment

Temperature 59° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

86.34″ x 61.89″ x 50.12″ (219.3 x 157.2 x 127.3 cm)

Weight

698.87 lbs. (317 kg)

Certifications

VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star

UV curable ink (LH-100) CyanMagentaYellowBlackWhiteClearPrimer
250ml Bottle I-LH100-C-B2-1 I-LH100-M-B2-1 I-LH100-Y-B2-1 I-LH100-K-B2-1 I-LH100-W-B2-1 I-LH100-CL-B2-1
1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA

UV curable ink (LUS-120) CyanMagentaYellowBlackWhiteClearPrimer
250ml Bottle I-LUS12-C-B2-1 I-LH100-M-B2-1 I-LUS12-Y-B2-1 I-LUS12-K-B2-1 I-LUS12-W-B2-1 I-LUS12-CL-B2-1
1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA LUS12-W-BA LUS12-CL-BA

UV curable ink (LUS-350) CyanMagentaYellowBlackWhiteClearPrimer
1L Bottle LUS35-C-BA LUS35-M-BA LUS35-Y-BA LUS35-K-BA LUS35-W-BA LUS35-CL-BA

UV Primer (PR-200) Primer
250ml Bottle PR200-Z-BA
1L Bottle PR200-Z-BA

UV curable ink (LH-100)
250ml Bottle
Cyan:
I-LH100-C-B2-1
Magenta:
I-LH100-M-B2-1
Yellow:
I-LH100-Y-B2-1
Black:
I-LH100-K-B2-1
White:
I-LH100-W-B2-1
Clear:
I-LH100-CL-B2-1
Primer:
_ _
:
_ _
:
_ _
:
_ _
1L Bottle
Cyan:
LH100-C-BA
Magenta:
LH100-M-BA
Yellow:
LH100-Y-BA
Black:
LH100-K-BA
White:
LH100-W-BA
Clear:
LH100-CL-BA
Primer:
_ _
:
_ _
:
_ _
:
_ _
UV curable ink (LUS-120)
250ml Bottle
Cyan:
I-LUS12-C-B2-1
Magenta:
I-LH100-M-B2-1
Yellow:
I-LUS12-Y-B2-1
Black:
I-LUS12-K-B2-1
White:
I-LUS12-W-B2-1
Clear:
I-LUS12-CL-B2-1
Primer:
_ _
:
_ _
:
_ _
:
_ _
1L Bottle
Cyan:
LUS12-C-BA
Magenta:
LUS12-M-BA
Yellow:
LUS12-Y-BA
Black:
LUS12-K-BA
White:
LUS12-W-BA
Clear:
LUS12-CL-BA
:
_ _
:
_ _
:
_ _
:
_ _
UV curable ink (LUS-350)
1L Bottle
Cyan:
LUS35-C-BA
Magenta:
LUS35-M-BA
Yellow:
LUS35-Y-BA
Black:
LUS35-K-BA
White:
LUS35-W-BA
Clear:
LUS35-CL-BA
Primer:
_ _
:
_ _
:
_ _
:
_ _
UV Primer (PR-200)
250ml Bottle
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
Primer:
PR200-Z-BA
:
_ _
:
_ _
:
_ _
1L Bottle
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
:
_ _
Primer:
PR200-Z-BA
:
_ _
:
_ _
:
_ _

Frequently Bought Together

The Kebab option for UJF Series offers 360-degree direct printing on a wide range of objects, such as stainless steel tumblers, bottles, cans, vases, packaging and candle holders. This accessory is easily mounted to the printer’s flatbed table and functions intuitively via our RasterLink6 software.

360-degree direct printing on cylindrical products
